ASDXRRX010ND7A5
SENSOR 0.36PSID 0.09"" 12BITManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

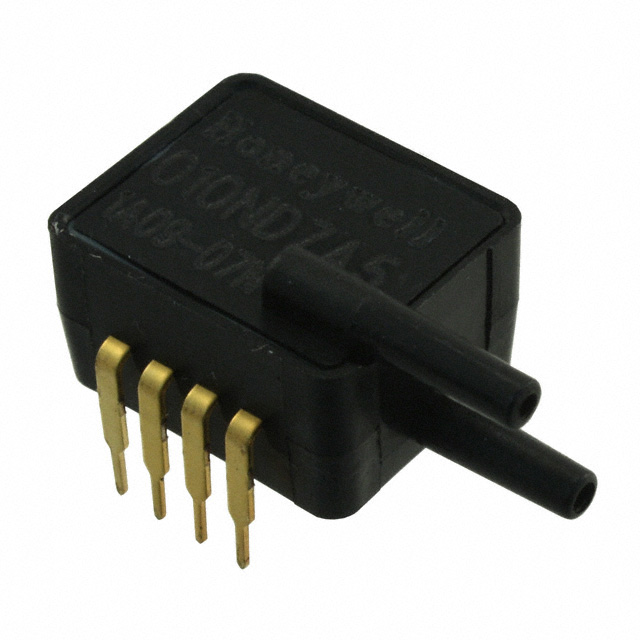

Honeywell Sensing and Productivity Solutions ASDX series differential pressure sensor, part number ASDXRRX010ND7A5. This 12-bit output sensor measures pressure from -0.36 PSI to +0.36 PSI (-2.49 kPa to +2.49 kPa) with ±2% accuracy. It features a dual port design with a male 0.09" (2.31mm) tube connection and barbless port style. The sensor is temperature compensated and designed for board mount applications, utilizing an 8-DIP module package with PC pin termination. Operating voltage is between 4.75V and 5.25V, with an operating temperature range of -20°C to 105°C. This component is suitable for use in industrial automation, medical devices, and HVAC systems.
Additional Information
Series: ASDXRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 12 b |
| Operating Pressure | ±0.36PSI (±2.49kPa) |
| Pressure Type | Differential |
| Accuracy | ±2% |
| Operating Temperature | -20°C ~ 105°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.09"" (2.31mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | ±0.72PSI (±4.96kPa) |
