ASDXRRX005NDAA5
SENSOR 0.18PSID 0.09"" 4.5VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

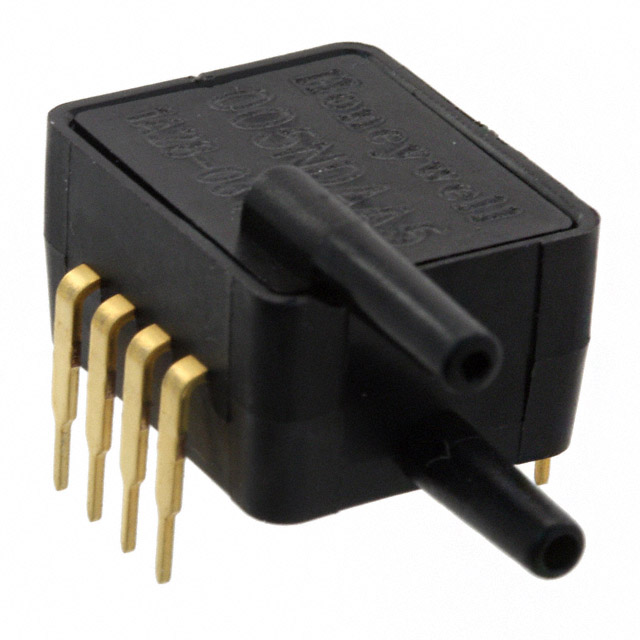

Honeywell Sensing and Productivity Solutions ASDX series differential pressure sensor, part number ASDXRRX005NDAA5. This board-mount component offers a ±0.18 PSI (±1.25 kPa) operating pressure range with ±2% accuracy. Featuring temperature compensation, it outputs an analog voltage from 0.5 V to 4.5 V across a 4.75 V to 5.25 V supply. The sensor is housed in an 8-DIP module package with dual male barbless ports, each accepting a 0.09" (2.31mm) tube. Designed for operation between -20°C and 105°C, it is suitable for applications requiring precise differential pressure measurement, such as industrial automation and medical instrumentation.
Additional Information
Series: ASDXRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | ±0.18PSI (±1.25kPa) |
| Pressure Type | Differential |
| Accuracy | ±2% |
| Operating Temperature | -20°C ~ 105°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.09"" (2.31mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | ±0.36PSI (±2.48kPa) |
