ASDXRRX005ND7A5
SENSOR 0.18PSID 0.09"" 12BITManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

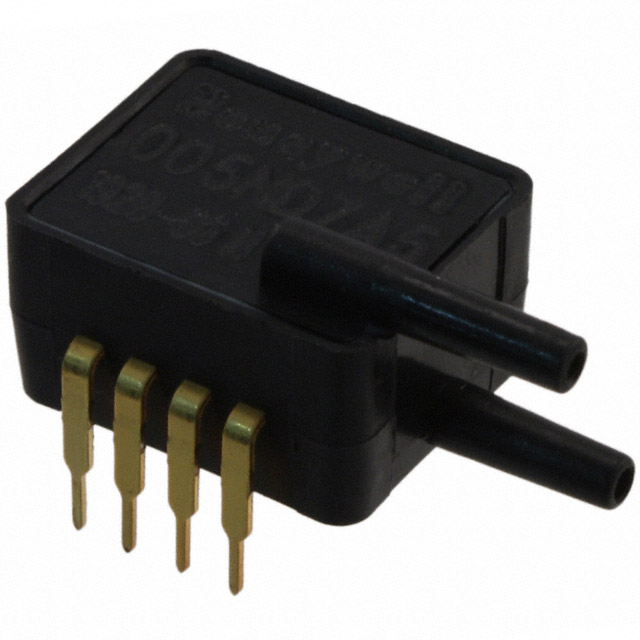

Honeywell Sensing and Productivity Solutions ASDX Series differential pressure sensor, part number ASDXRRX005ND7A5. This sensor offers a ±0.18 PSI (±1.25 kPa) operating pressure range with ±2% accuracy. Designed for board mounting applications, it features temperature compensation and a dual 12-bit I2C output. The device utilizes a male, barbless port style with a 0.09" (2.31mm) tube connection. It operates within a -20°C to 105°C temperature range and requires a 4.75V to 5.25V supply voltage. The 8-DIP module package with PC pin termination is suitable for through-hole mounting. This component is utilized in industrial automation and medical instrumentation.
Additional Information
Series: ASDXRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 12 b |
| Operating Pressure | ±0.18PSI (±1.25kPa) |
| Pressure Type | Differential |
| Accuracy | ±2% |
| Operating Temperature | -20°C ~ 105°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.09"" (2.31mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | ±0.36PSI (±2.48kPa) |
