ASDXRRX001PGAA5
SENSOR 1PSIG 0.09"" 4.5VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.09"" (2.31mm) Tube, Dual 0.5 V ~ 4.5 V 8-DIP Module
Additional Information
Series: ASDXRoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±2% |
| Operating Temperature | -20°C ~ 105°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75 ~ 5.25V |
| Port Size | Male - 0.09"" (2.31mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 2PSI (13.79kPa) |
Request a Quote
Clients Also Buy

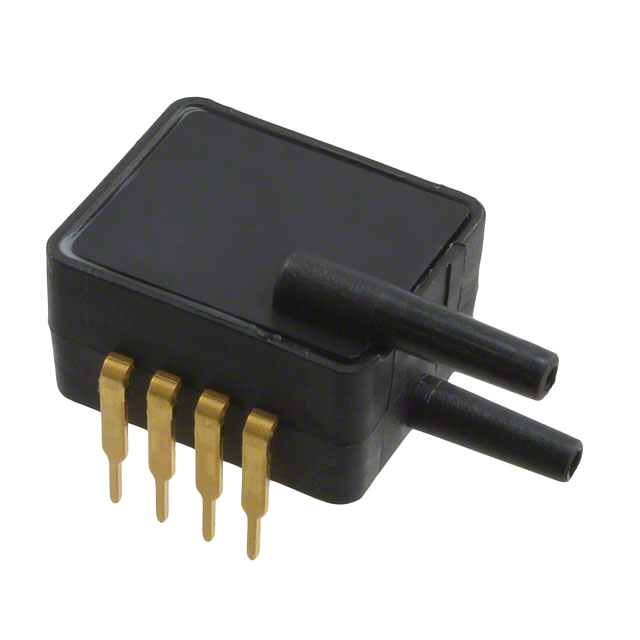

ASDX001D44D
