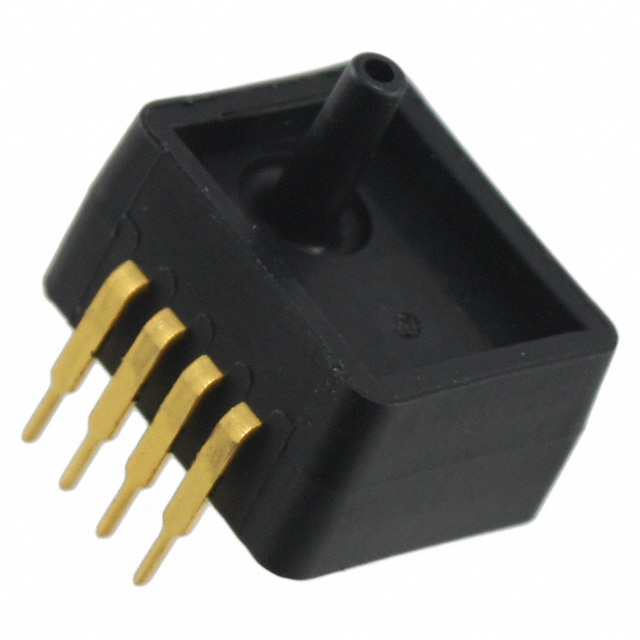

ASDXAVX030PGAA5
SENSOR 30PSIG 0.09"" 4.5VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions ASDX Series ASDXAVX030PGAA5 is a vented gauge pressure sensor with an operating pressure of 30 PSI (206.84 kPa) and a maximum pressure of 60 PSI (413.69 kPa). This analog voltage output sensor provides a 0.5 V to 4.5 V output range. Featuring a 0.09-inch (2.31mm) barbed port and an 8-DIP module package, it is designed for through-hole mounting. The device offers ±2% accuracy and is temperature compensated, operating across a temperature range of -20°C to 105°C. It is suitable for applications including board mounting and is supplied in bulk packaging. The specified supply voltage is 4.75V to 5.25V.
Additional Information
Series: ASDXRoHS Status: Request inventory verificationManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±2% |
| Operating Temperature | -20°C ~ 105°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.09"" (2.31mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 60PSI (413.69kPa) |
