ASDXAVX015PGAA5
SENSOR 15PSIG 0.09"" 4.5VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

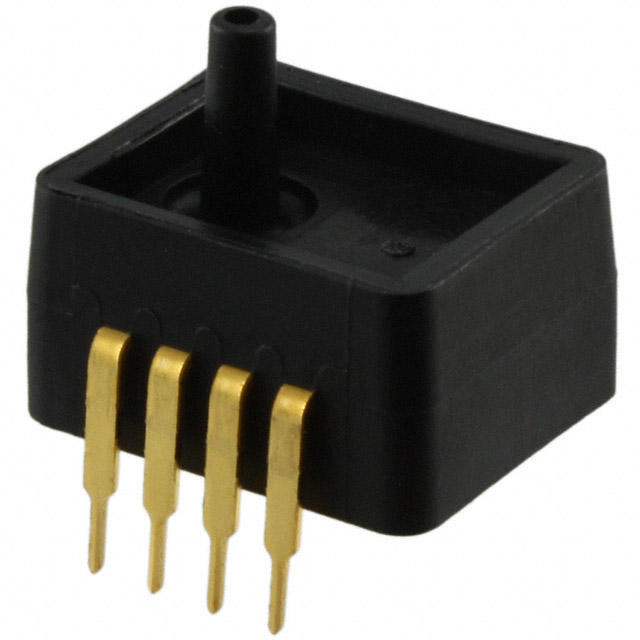

Honeywell Sensing and Productivity Solutions ASDX Series ASDXAVX015PGAA5 is a vented gauge pressure sensor designed for board mount applications. This analog voltage output device operates within a 0.5 V to 4.5 V range, supplied by voltages between 4.75 V and 5.25 V. Featuring temperature compensation and ±2% accuracy, it measures operating pressures up to 15 PSI (103.42 kPa) and has a maximum pressure rating of 30 PSI (206.84 kPa). The sensor utilizes a male, 0.09-inch (2.31mm) tube port and a barbless port style. Housed in an 8-DIP module with through-hole mounting and PC pin termination, it operates across a temperature range of -20°C to 105°C. This component is commonly found in industrial automation and HVAC systems.
Additional Information
Series: ASDXRoHS Status: Request inventory verificationManufacturer Lead Time: 60 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±2% |
| Operating Temperature | -20°C ~ 105°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.09"" (2.31mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 30PSI (206.84kPa) |
