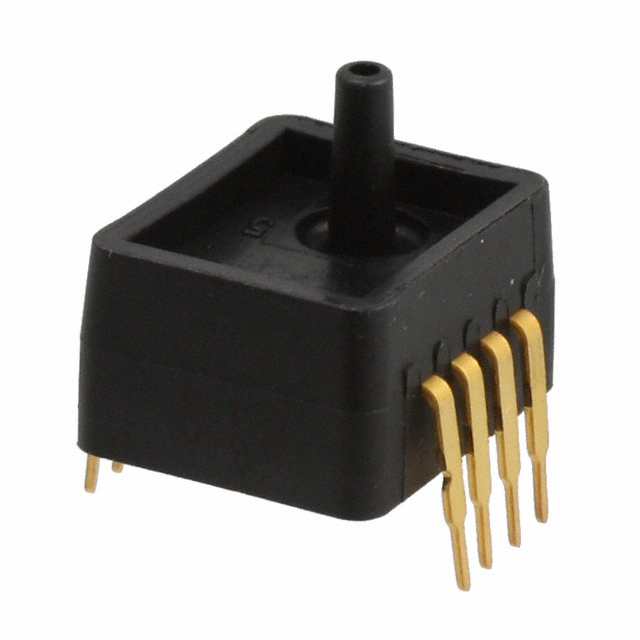

ASDXAVX010NG7A5
SENSOR 0.36PSIG 0.09"" 12BITManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions ASDX series ASDXAVX010NG7A5 is a vented gauge pressure sensor with an operating pressure range of 0.36 PSI (2.49 kPa). This component features a 0.09-inch (2.31mm) male tube port and a 12-bit I2C output. Designed for board-mount applications, it offers temperature compensation and an accuracy of ±2%. The sensor operates within a temperature range of -20°C to 105°C and is supplied in an 8-DIP module package. The supply voltage range is 4.75V to 5.25V. This device is suitable for applications in HVAC, industrial automation, and medical equipment where precise pressure monitoring is critical.
Additional Information
Series: ASDXRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 12 b |
| Operating Pressure | 0.36PSI (2.49kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±2% |
| Operating Temperature | -20°C ~ 105°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.09"" (2.31mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 0.72PSI (4.96kPa) |
