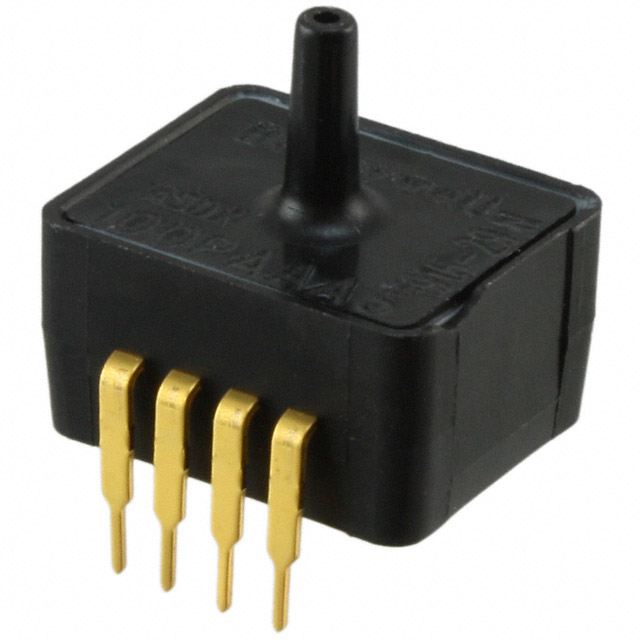

ASDXACX015PA7A5
SENSOR 15PSIA 0.09"" 12BITManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions ASDX Series absolute pressure sensor, part number ASDXACX015PA7A5, offers precise 15 PSIA (103.42 kPa) measurement with a 12-bit output via I2C interface. This board-mount component features a through-hole mounting type and an 8-DIP module package. The sensor is designed for applications requiring temperature compensation and operates within a pressure range up to 30 PSI (206.84 kPa). Its Male, 0.09-inch (2.31mm) tube port with a barbless style facilitates secure connections. Operating across a wide temperature range of -20°C to 105°C and requiring a supply voltage of 4.75V to 5.25V, the ASDXACX015PA7A5 is suitable for demanding environments in industries such as industrial automation, medical devices, and aerospace. Accuracy is rated at ±2%.
Additional Information
Series: ASDXRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 12 b |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±2% |
| Operating Temperature | -20°C ~ 105°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.09"" (2.31mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 30PSI (206.84kPa) |
