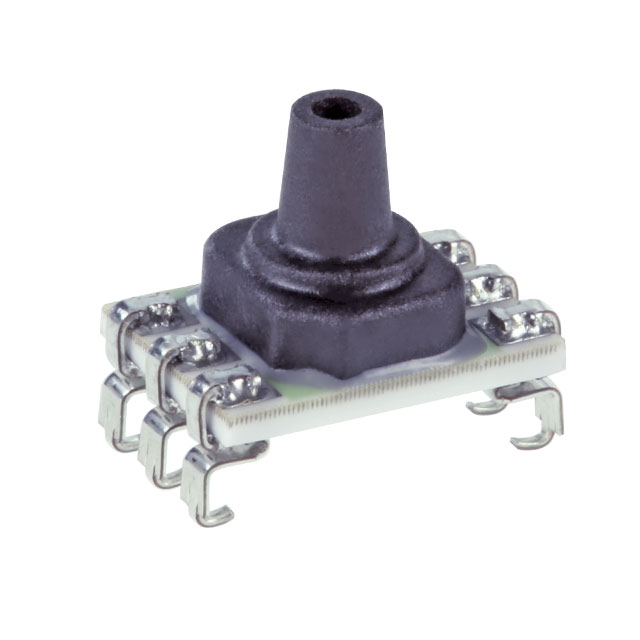

ABPMLNN001PGAA3
SENSOR 1PSIG 0.11"" 2.97V 6SMDManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions ABP Series ABPMLNN001PGAA3 is a 1 PSI vented gauge pressure sensor with an amplified analog voltage output. This component features temperature compensation and ±0.25% accuracy, designed for precise pressure measurement. The 6-SMD module package with J-lead termination facilitates surface mounting. It operates from a 3.3V supply, delivering an output voltage range of 0.33V to 2.97V. The sensor is equipped with a male, 0.11-inch (2.67mm) barbless tube port, suitable for applications requiring accurate pressure readings up to 30 PSI. Operating within a temperature range of -40°C to 85°C, this sensor is commonly utilized in medical ventilation systems.
Additional Information
Series: ABPRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tray |
| Package / Case | 6-SMD Module |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.33 V ~ 2.97 V |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | J Lead |
| Voltage - Supply | 3.3V |
| Port Size | Male - 0.11"" (2.67mm) Tube |
| Applications | Medical Ventilation |
| Supplier Device Package | 6-SMD |
| Port Style | Barbless |
| Maximum Pressure | 30PSI (206.84kPa) |
