ABPMJJT015PGAA5
SENSOR 15PSIG 0.07"" 4.5V 6SMDManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

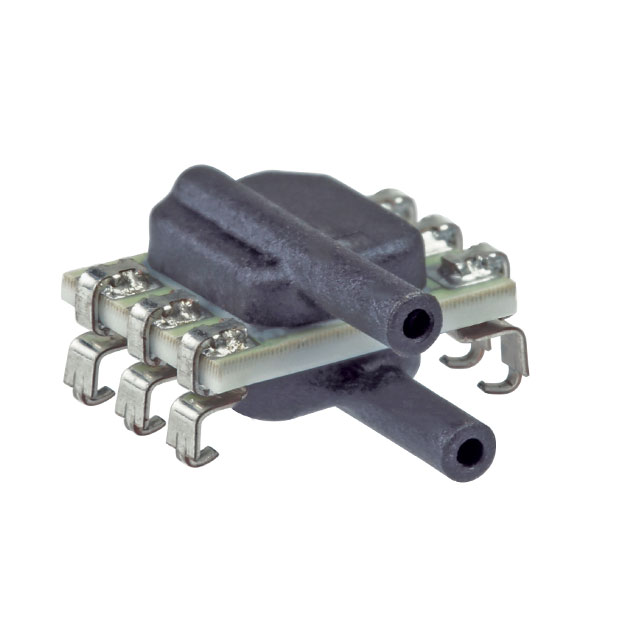

Honeywell Sensing and Productivity Solutions ABP Series ABPMJJT015PGAA5 is a vented gauge pressure sensor with an operating pressure of 15 PSI (103.42kPa) and a maximum pressure rating of 250 PSI (1723.69kPa). This 6-SMD module features a 0.07-inch (1.88mm) dual barbless tube port and J-lead termination. It provides an amplified, temperature-compensated analog voltage output ranging from 0.5V to 4.5V, with an accuracy of ±0.25%. The sensor operates within a temperature range of -40°C to 85°C and requires a 5V supply. This component is commonly utilized in applications such as medical ventilation.
Additional Information
Series: ABPRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 6-SMD Module |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | J Lead |
| Voltage - Supply | 5V |
| Port Size | Male - 0.07"" (1.88mm) Tube, Dual |
| Applications | Medical Ventilation |
| Supplier Device Package | 6-SMD |
| Port Style | Barbless |
| Maximum Pressure | 250PSI (1723.69kPa) |
