ABPMANN005PGAA3
SENSOR 5PSIG 0.08"" 2.97V 6SMDManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

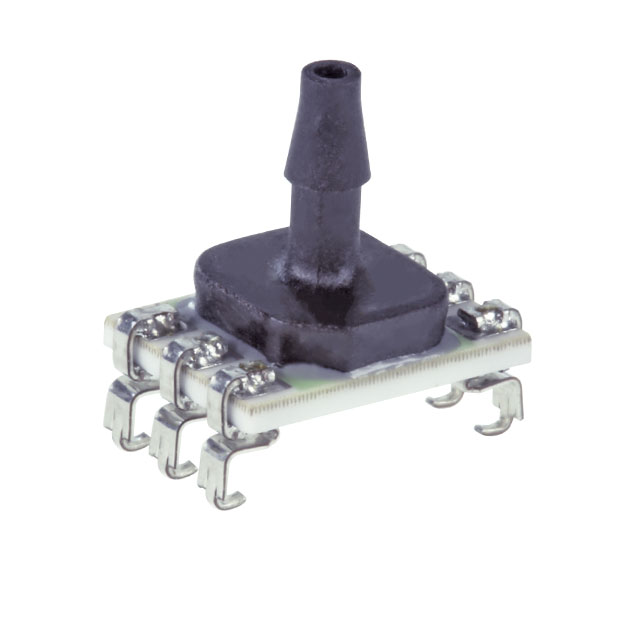

Honeywell Sensing and Productivity Solutions ABPMANN005PGAA3 is a 5 PSI (34.47 kPa) vented gauge pressure sensor from the ABP series. This surface mount device features a 0.08" (1.93mm) barbed port and provides an amplified analog voltage output ranging from 0.33V to 2.97V, with a supply voltage of 3.3V. The sensor is temperature compensated and offers ±0.25% accuracy, operating within a temperature range of -40°C to 85°C. It is housed in a 6-SMD module with J-lead termination. The maximum pressure rating is 90 PSI (620.53 kPa). Applications include medical ventilation systems.
Additional Information
Series: ABPRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tube |
| Package / Case | 6-SMD Module |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.33 V ~ 2.97 V |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | J Lead |
| Voltage - Supply | 3.3V |
| Port Size | Male - 0.08"" (1.93mm) Tube |
| Applications | Medical Ventilation |
| Supplier Device Package | 6-SMD |
| Port Style | Barbed |
| Maximum Pressure | 90PSI (620.53kPa) |
