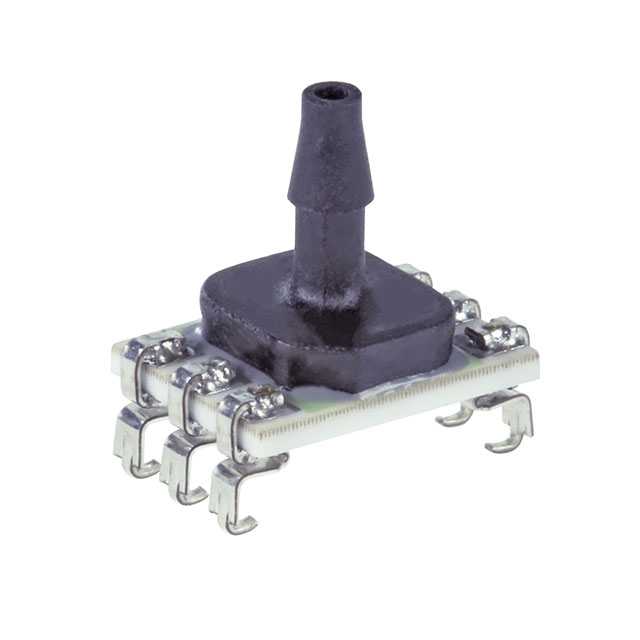

ABPMANN004BGAA5
SENSOR 58.02PSIG 0.08"" 4.5V 6SMDManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions ABP Series ABPMANN004BGAA5 is a vented gauge pressure sensor with an operating pressure range of 0 to 58.02 PSIG (400 kPa). This amplified, temperature-compensated sensor features a ±0.25% accuracy and an analog voltage output ranging from 0.5 V to 4.5 V, with a 5V supply voltage. The 6-SMD module package utilizes a male barbed port with a 0.08-inch (1.93mm) tube size. Operating across a temperature range of -40°C to 85°C, this component is suitable for demanding applications, including medical ventilation systems.
Additional Information
Series: ABPRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tube |
| Package / Case | 6-SMD Module |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 58.02PSI (400kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | J Lead |
| Voltage - Supply | 5V |
| Port Size | Male - 0.08"" (1.93mm) Tube |
| Applications | Medical Ventilation |
| Supplier Device Package | 6-SMD |
| Port Style | Barbed |
| Maximum Pressure | 116.03PSI (800kPa) |
