ABPMAND001PG2A3
SENSOR 1PSIG 0.08"" 12BIT 6SMDManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

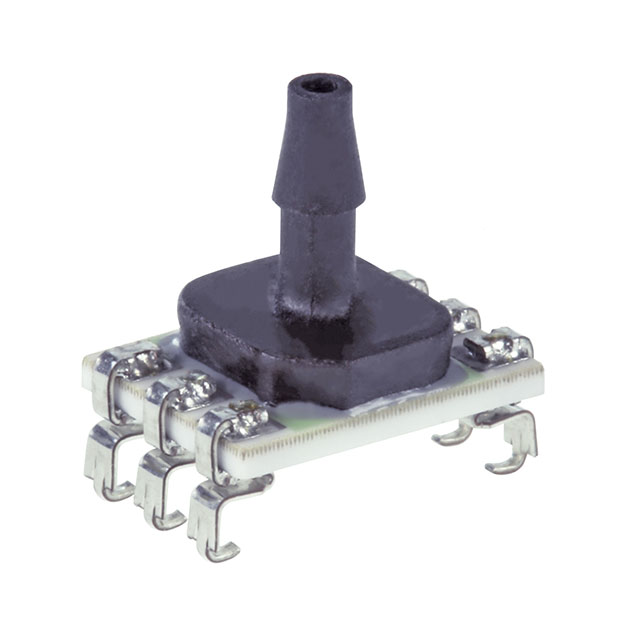

Honeywell Sensing and Productivity Solutions ABP Series ABPMAND001PG2A3 is a vented gauge pressure sensor designed for precise measurements up to 1 PSI (6.89 kPa). This 6-SMD module features a 0.08" (1.93mm) barbed port and provides an amplified, temperature-compensated output via I2C with 12-bit resolution. The device offers ±0.25% accuracy and operates across a temperature range of -40°C to 85°C, with a maximum pressure rating of 30 PSI (206.84 kPa). Its surface mount design with J-lead termination and 3.3V supply voltage makes it suitable for applications in medical ventilation.
Additional Information
Series: ABPRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tube |
| Package / Case | 6-SMD Module |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Output | 12 b |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | J Lead |
| Voltage - Supply | 3.3V |
| Port Size | Male - 0.08"" (1.93mm) Tube |
| Applications | Medical Ventilation |
| Supplier Device Package | 6-SMD |
| Port Style | Barbed |
| Maximum Pressure | 30PSI (206.84kPa) |
