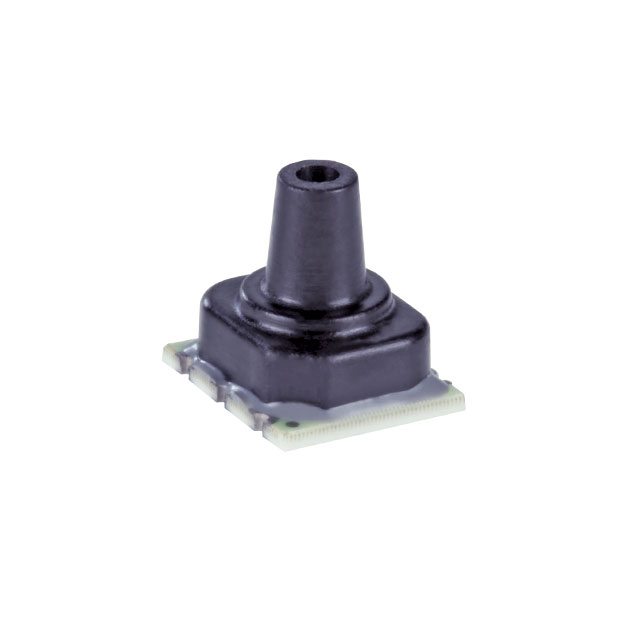

ABPLLND060MGAA3
SENSOR 0.87PSIG 0.11"" 2.97V MODManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions ABP series pressure sensor, part number ABPLLND060MGAA3. This vented gauge pressure sensor measures 0.87 PSI (6 kPa) with an amplified analog voltage output ranging from 0.33 V to 2.97 V, featuring ±0.25% accuracy. The sensor is housed in a 6-SMD module with no lead termination, designed for surface mount applications. It includes temperature compensation and an amplified output, operating within a 3.3V supply voltage. The port is a male, 0.11" (2.67mm) tube with a barbless style. This component is suitable for demanding applications, including medical ventilation, and operates across a wide temperature range of -40°C to 85°C. The maximum pressure rating is 12.33 PSI (85 kPa).
Additional Information
Series: ABPRoHS Status: Request inventory verificationManufacturer Lead Time: 68 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tray |
| Package / Case | 6-SMD Module, No Lead |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.33 V ~ 2.97 V |
| Operating Pressure | 0.87PSI (6kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 3.3V |
| Port Size | Male - 0.11"" (2.67mm) Tube |
| Applications | Medical Ventilation |
| Supplier Device Package | Module |
| Port Style | Barbless |
| Maximum Pressure | 12.33PSI (85kPa) |
