ABPDRRT005PG2A5
SENSOR 5PSIG 0.06"" 12BIT 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

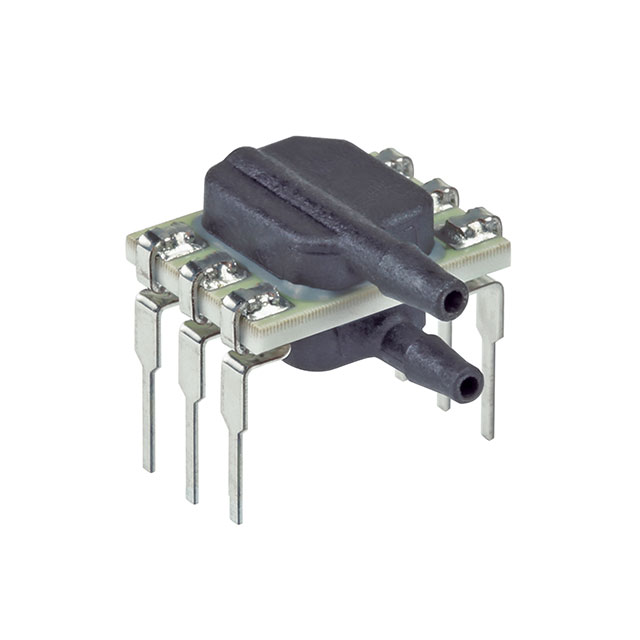

Honeywell Sensing and Productivity Solutions offers the ABP series ABPDRRT005PG2A5, a 5 PSI (34.47 kPa) vented gauge pressure sensor. This component features a 0.06" (1.6mm) dual barbed male port and a 6-DIP module package for through-hole mounting. The sensor provides an amplified, temperature-compensated output with 12-bit resolution via an I2C interface. Designed for demanding environments, it operates within a -40°C to 85°C temperature range and boasts an accuracy of ±0.25%. The maximum pressure rating is 90 PSI (620.53 kPa). This device is commonly utilized in medical ventilation applications.
Additional Information
Series: ABPRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tube |
| Package / Case | 6-DIP Module |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 12 b |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.06"" (1.6mm) Tube, Dual |
| Applications | Medical Ventilation |
| Supplier Device Package | 6-DIP |
| Port Style | Barbed |
| Maximum Pressure | 90PSI (620.53kPa) |
