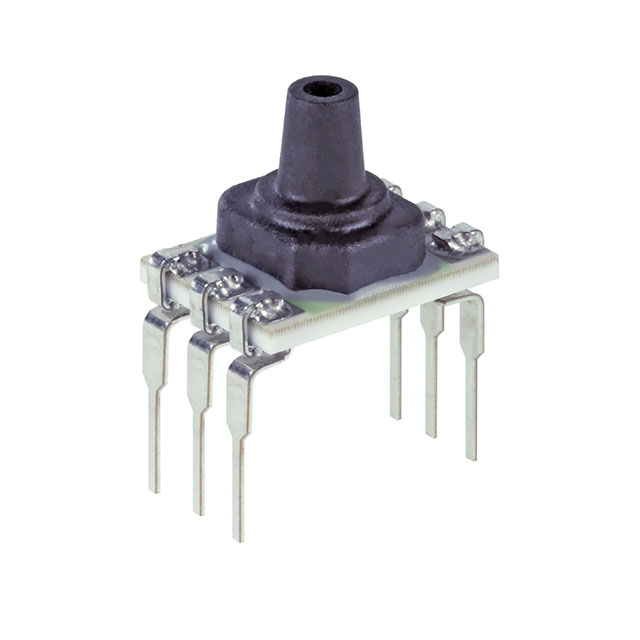

ABPDLNN100MG2A3
SENSOR 1.45PSIG 0.11"" 12BIT 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions ABP series ABPDLNN100MG2A3 is a highly accurate (±0.25%) vented gauge pressure sensor designed for precise measurement of low pressures. This component features an amplified, temperature-compensated output delivered via an I2C interface, providing 12-bit resolution. The sensor is specified for an operating pressure range of 1.45 PSI (10 kPa) and can withstand a maximum pressure of 12.33 PSI (85 kPa). Its construction includes a 0.11" (2.67mm) barbless tube port and a 6-DIP module package for through-hole mounting. The operating temperature range is -40°C to 85°C, with a supply voltage of 3.3V. This sensor is well-suited for demanding applications, including medical ventilation systems.
Additional Information
Series: ABPRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tray |
| Package / Case | 6-DIP Module |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 12 b |
| Operating Pressure | 1.45PSI (10kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3.3V |
| Port Size | Male - 0.11"" (2.67mm) Tube |
| Applications | Medical Ventilation |
| Supplier Device Package | 6-DIP |
| Port Style | Barbless |
| Maximum Pressure | 12.33PSI (85kPa) |
