ABPDJJT001PGAA5
SENSOR 1PSIG 0.07"" 4.5V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

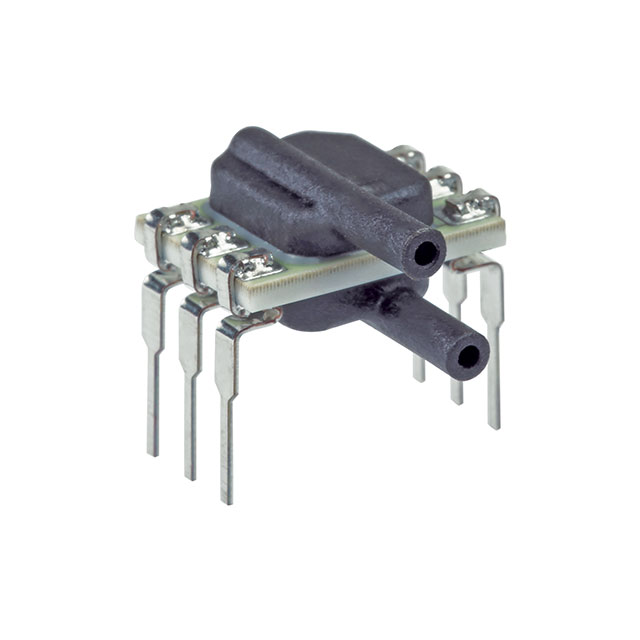

Honeywell Sensing and Productivity Solutions ABP Series pressure sensor, part number ABPDJJT001PGAA5. This vented gauge sensor measures 1 PSI (6.89 kPa) with an amplified, temperature-compensated analog voltage output ranging from 0.5 V to 4.5 V. The device features a ±0.25% accuracy and a 0.07-inch (1.88mm) dual barbed port for direct tubing connection. Designed for operation within a -40°C to 85°C temperature range, it is packaged as a 6-DIP module with PC pin termination for through-hole mounting. This component is suitable for applications including medical ventilation.
Additional Information
Series: ABPRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tray |
| Package / Case | 6-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.07"" (1.88mm) Tube, Dual |
| Applications | Medical Ventilation |
| Supplier Device Package | 6-DIP |
| Port Style | Barbless |
| Maximum Pressure | 30PSI (206.84kPa) |
