ABPDJJT001PDSA3
BASIC PRESSURE SENSORManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

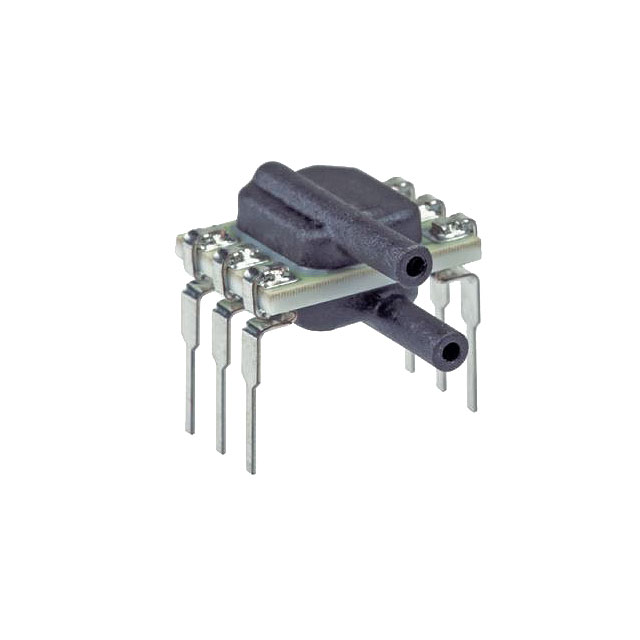

Honeywell Sensing and Productivity Solutions ABP series differential pressure sensor, part number ABPDJJT001PDSA3. This component offers a ±1 PSI (±6.89 kPa) operating pressure range with a ±0.25% accuracy. It features an amplified and temperature-compensated output delivered via a 12-bit SPI interface. The sensor is housed in a 6-DIP package with dual barbless ports, each accepting a 0.07" (1.78mm) tube, positioned on the same side. Designed for through-hole mounting, it operates across a temperature range of -40°C to 85°C with a supply voltage of 3V to 3.6V. This sensor is utilized in critical applications such as medical ventilation systems.
Additional Information
Series: ABPRoHS Status: RoHS CompliantManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tray |
| Package / Case | 6-DIP (0.453"", 11.50mm), Dual Ports, Same Side |
| Output Type | SPI |
| Mounting Type | Through Hole |
| Output | 12b |
| Operating Pressure | ±1PSI (±6.89kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pins |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.07"" (1.78mm) Tube, Dual |
| Applications | Medical Ventilation |
| Supplier Device Package | 6-DIP |
| Port Style | Barbless |
| Maximum Pressure | 30PSI (206.84kPa) |
| Grade | - |
| Qualification | - |
