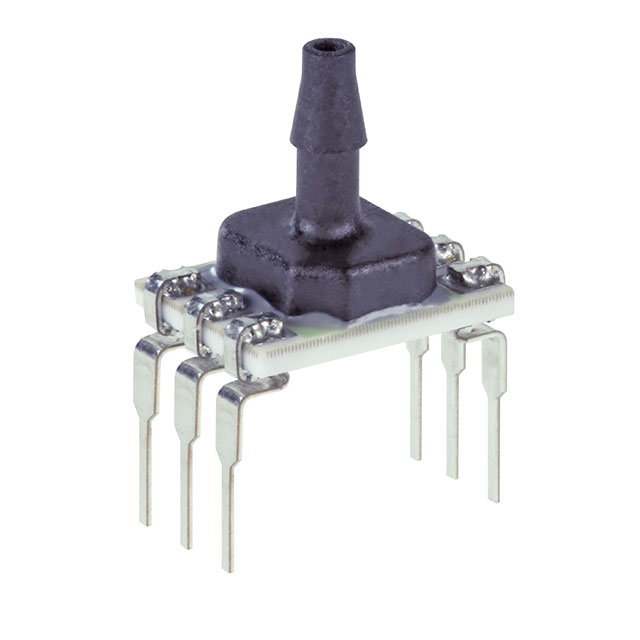

ABPDANT015PGAA5
SENSOR 15PSIG 0.08"" 4.5V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.08"" (1.93mm) Tube 0.5 V ~ 4.5 V 6-DIP Module
Additional Information
Series: ABPRoHS Status: Request inventory verificationManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tube |
| Package / Case | 6-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.08"" (1.93mm) Tube |
| Applications | Medical Ventilation |
| Supplier Device Package | 6-DIP |
| Port Style | Barbed |
| Maximum Pressure | 250PSI (1723.69kPa) |
