ABP2MRRT060MDAA5XX
SENSOR 0.87PSID 0.063"" 4.5V 6SMDManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

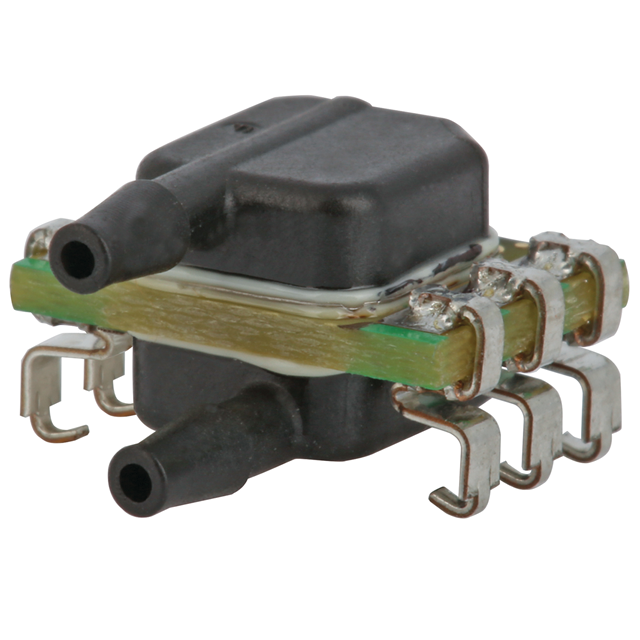

Honeywell Sensing and Productivity Solutions ABP2 series ABP2MRRT060MDAA5XX is a differential pressure sensor with an operating range of -0.87 PSI to 0.87 PSI (-6 kPa to 6 kPa). This 6-SMD, J-Lead device features a 0.063" (1.6mm) barbed tube port and an analog voltage output spanning 0.5 V to 4.5 V. Designed for surface mounting, it offers ±0.25% accuracy and operates across a temperature range of -40°C to 110°C. The sensor is amplified and temperature compensated, with a supply voltage range of 4.75V to 5.25V. Its robust construction makes it suitable for applications in industrial automation, HVAC systems, and medical devices.
Additional Information
Series: ABP2RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Box |
| Package / Case | 6-SMD, J-Lead, Dual Ports, Same Side |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | -0.87PSI ~ 0.87PSI (-6kPa ~ 6kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | J Lead |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.063"" (1.6mm) Tube, Dual |
| Supplier Device Package | 6-SMD |
| Port Style | Barbed |
| Maximum Pressure | 29.01PSI (200kPa) |
