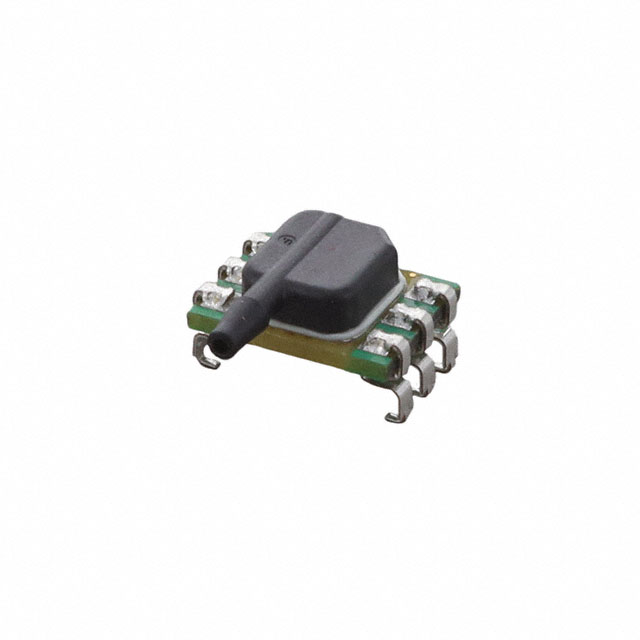

ABP2MRNT016KG2A3XX
SENSOR 2.32PSIG 14BIT 6SMDManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions ABP2 Series ABP2MRNT016KG2A3XX is a vented gauge pressure sensor with an operating pressure range of 0 to 2.32 PSI (16 kPa). This 14-bit digital output sensor features an I2C interface for communication. The device is housed in a compact 6-SMD, J-Lead package with a side port for pressure connection. It offers amplified output and is temperature compensated, with an accuracy of ±0.25%. Operating across a wide temperature range of -40°C to 110°C, this sensor is suitable for supply voltages from 1.8V to 3.6V. Applications include industrial monitoring, medical equipment, and HVAC systems.
Additional Information
Series: ABP2RoHS Status: RoHS CompliantManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Box |
| Package / Case | 6-SMD, J-Lead, Side Port |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Output | 14 b |
| Operating Pressure | 2.32PSI (16kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | J Lead |
| Voltage - Supply | 1.8V ~ 3.6V |
| Port Size | - |
| Supplier Device Package | 6-SMD |
| Port Style | - |
| Maximum Pressure | - |
