ABP2LSNT030PGAA3XT
ABP2 LL SMT SN PORTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

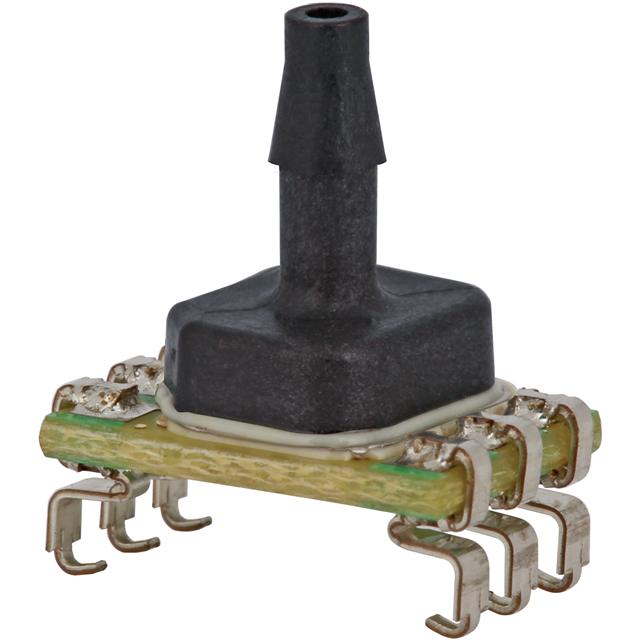

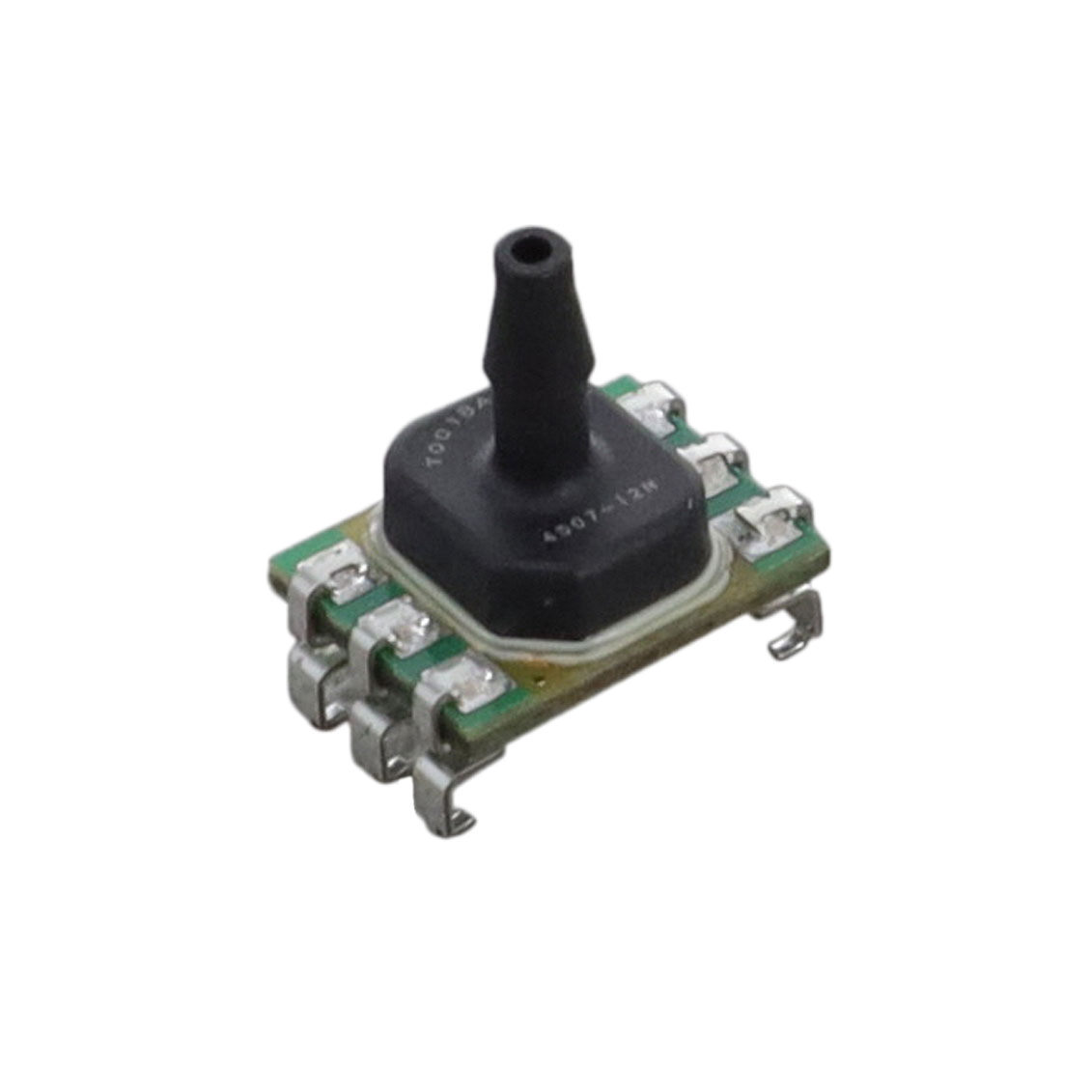

Honeywell Sensing and Productivity Solutions ABP2 Series pressure sensor, part number ABP2LSNT030PGAA3XT, offers a 30 PSI (206.84kPa) gauge pressure sensing capability. This amplified, temperature-compensated device features a 0.5 V to 4.5 V analog voltage output. Designed for surface mount applications with a 6-SMD Module, No Lead package, it utilizes a 0.11" (2.79mm) barbless male tube port. The ABP2LSNT030PGAA3XT operates with a supply voltage range of 1.8V to 3.6V and exhibits an accuracy of ±0.25%. Its robust construction supports an operating temperature range of -40°C to 110°C and a maximum pressure rating of 240 PSI (1654.74kPa). This component is commonly found in medical ventilation systems.
Additional Information
Series: ABP2RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 6-SMD Module, No Lead |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1.8V ~ 3.6V |
| Port Size | Male - 0.11"" (2.79mm) Tube |
| Applications | Medical Ventilation |
| Supplier Device Package | 6-SMT |
| Port Style | Barbless |
| Maximum Pressure | 240PSI (1654.74kPa) |
| Grade | - |
| Qualification | - |
