ABP2LSNT030PASA3XX
SENSOR 30PSIA 0.107"" 14BIT 6SMTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

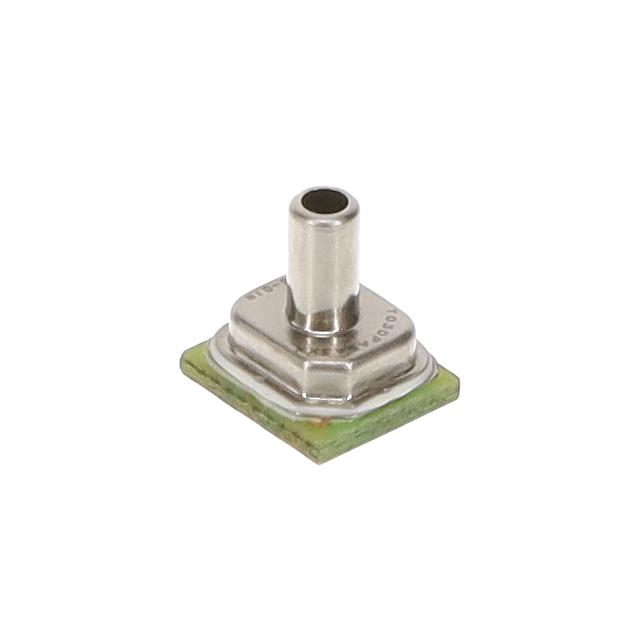

Pressure Sensor 30PSI (206.84kPa) Absolute Male - 0.107"" (2.72mm) Tube 14 b 6-SMD, No Lead, Top Port
Additional Information
Series: ABP2RoHS Status: RoHS CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Box |
| Package / Case | 6-SMD, No Lead, Top Port |
| Output Type | SPI |
| Mounting Type | Surface Mount |
| Output | 14 b |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1.8V ~ 3.6V |
| Port Size | Male - 0.107"" (2.72mm) Tube |
| Supplier Device Package | 6-SMT |
| Port Style | Barbless |
| Maximum Pressure | 240PSI (1654.74kPa) |
