ABP2LANT150PG2A3XX
SENSOR 150PSIG 0.11"" 14BIT 6SMTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

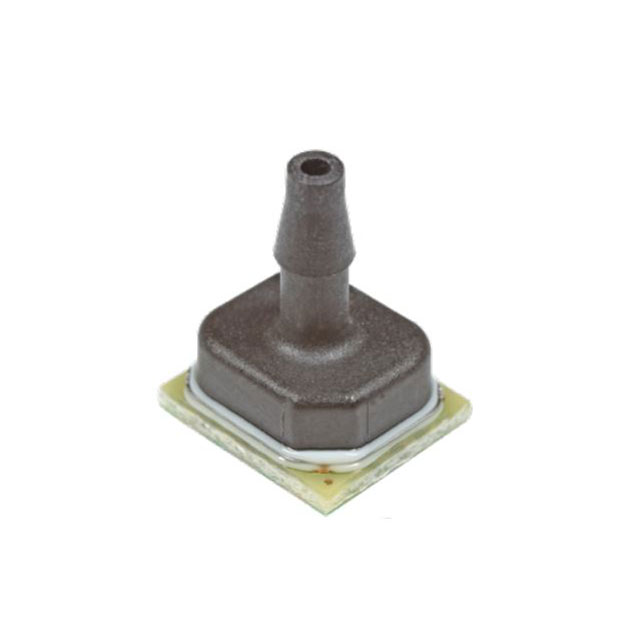

Honeywell Sensing and Productivity Solutions ABP2 series pressure sensor, part number ABP2LANT150PG2A3XX. This amplified, temperature-compensated vented gauge sensor measures up to 150 PSI (1034.21kPa) with a ±0.25% accuracy. It features a 0.11" (2.74mm) barbed male port and a 14-bit I2C output. The device operates from -40°C to 110°C and requires a 1.8V to 3.6V supply. Packaged in a 6-SMD, no lead, top port configuration, this sensor is suitable for demanding applications across industrial automation, HVAC systems, and medical equipment. The maximum pressure rating is 250 PSI (1723.69kPa).
Additional Information
Series: ABP2RoHS Status: RoHS CompliantManufacturer Lead Time: 41 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 6-SMD, No Lead, Top Port |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Output | 14 b |
| Operating Pressure | 150PSI (1034.21kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1.8V ~ 3.6V |
| Port Size | Male - 0.11"" (2.74mm) Tube |
| Supplier Device Package | 6-SMT |
| Port Style | Barbed |
| Maximum Pressure | 250PSI (1723.69kPa) |
