ABP2LANT030PGAA5XX
SENSOR 30PSIG 0.108"" 4.5V 6SMTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

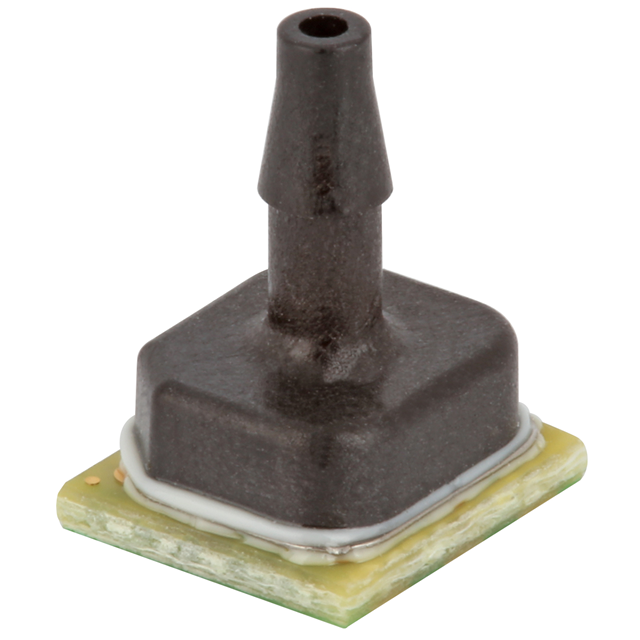

Honeywell Sensing and Productivity Solutions ABP2 series pressure sensor, part number ABP2LANT030PGAA5XX. This gauge pressure sensor features a ±0.25% accuracy and an operating pressure of 30 PSI (206.84 kPa), with a maximum pressure of 240 PSI (1654.74 kPa). It utilizes a 0.108" (2.74mm) barbed port and provides an amplified, temperature-compensated analog voltage output ranging from 0.5 V to 4.5 V. The sensor operates within a supply voltage of 4.75 V to 5.25 V and a temperature range of -40°C to 110°C. The component is housed in a 6-SMD, No Lead package with a top port and surface mount termination. This device is commonly found in industrial automation, medical instrumentation, and HVAC applications.
Additional Information
Series: ABP2RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Box |
| Package / Case | 6-SMD, No Lead, Top Port |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.108"" (2.74mm) Tube |
| Supplier Device Package | 6-SMT |
| Port Style | Barbed |
| Maximum Pressure | 240PSI (1654.74kPa) |
