ABP2LANT001BAAA5XX
SENSOR 14.5PSIA 0.108"" 4.5V 6SMTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

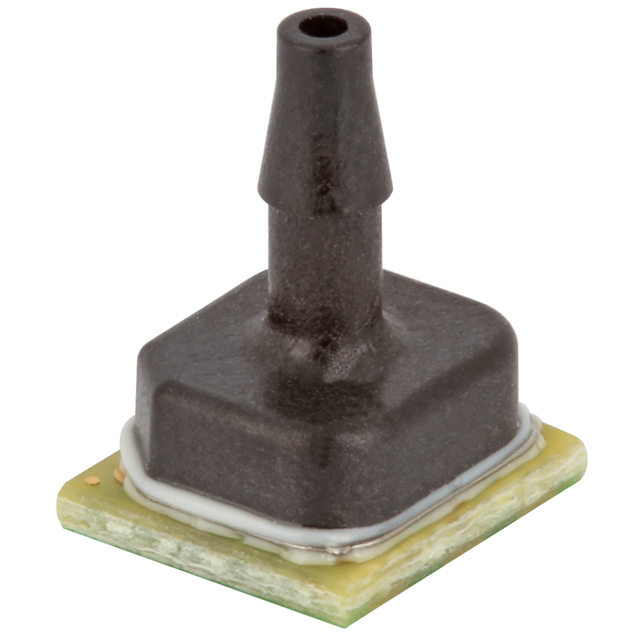

Honeywell Sensing and Productivity Solutions ABP2 series absolute pressure sensor, part number ABP2LANT001BAAA5XX. This 6-SMT device offers a calibrated pressure range of 14.5 PSI (100 kPa) with ±0.25% accuracy. It features an analog voltage output from 0.5 V to 4.5 V, specifically designed for amplified and temperature-compensated operation. The sensor utilizes a 0.108" (2.74mm) barbed tube port for pressure connection, suitable for surface mount integration. The supply voltage range is 4.75V to 5.25V. This component is commonly employed in industrial automation, medical devices, and HVAC systems, leveraging its robust performance across an operating temperature range of -40°C to 110°C.
Additional Information
Series: ABP2RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Box |
| Package / Case | 6-SMD, No Lead, Top Port |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 14.5PSI (100kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.108"" (2.74mm) Tube |
| Supplier Device Package | 6-SMT |
| Port Style | Barbed |
| Maximum Pressure | 232.06PSI (1600kPa) |
