ABP2LANG001BG2A3XX
SENSOR 14.5PSIG 0.108"" 14BIT SMTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

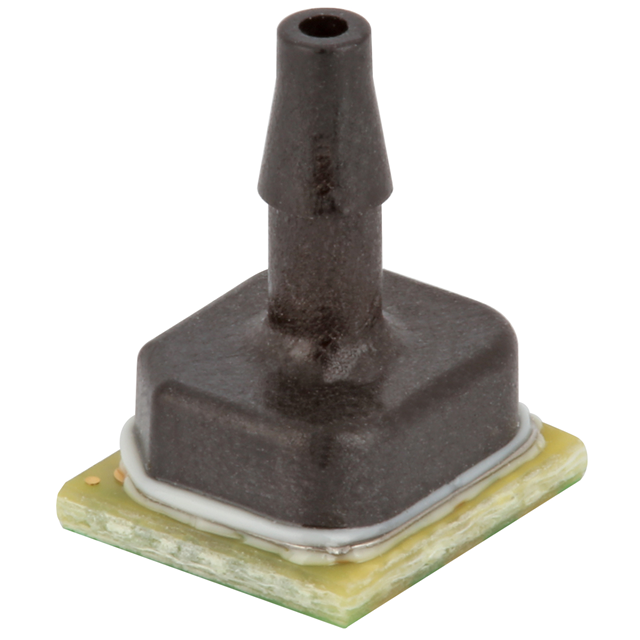

The Honeywell Sensing and Productivity Solutions ABP2 series pressure sensor, part number ABP2LANG001BG2A3XX, offers a 14.5 PSI (100 kPa) gauge pressure range with a ±0.25% accuracy. This component features an amplified, temperature-compensated output delivered via I2C, providing 14-bit resolution. Designed for surface mounting, it utilizes a 6-SMT, no lead package with a top port and a 0.108" (2.74mm) barbed tube port for connection. Operating within a voltage supply range of 1.8V to 3.6V and an ambient temperature range of -40°C to 110°C, this sensor is suitable for applications requiring precise pressure monitoring in industries such as industrial automation, medical devices, and HVAC systems. The maximum pressure rating is 232.06 PSI (1600 kPa).
Additional Information
Series: ABP2RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Box |
| Package / Case | 6-SMD, No Lead, Top Port |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Output | 14 b |
| Operating Pressure | 14.5PSI (100kPa) |
| Pressure Type | Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1.8V ~ 3.6V |
| Port Size | Male - 0.108"" (2.74mm) Tube |
| Supplier Device Package | 6-SMT |
| Port Style | Barbed |
| Maximum Pressure | 232.06PSI (1600kPa) |
