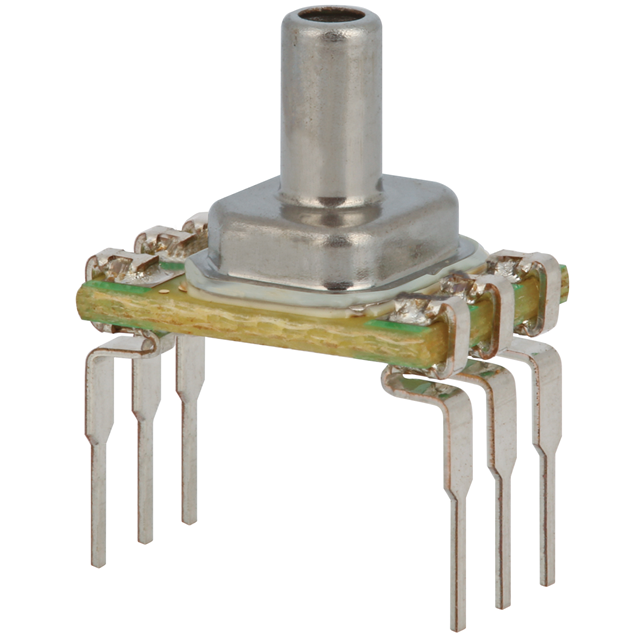

ABP2DSNT150PGAA5XX
SENSOR 150PSIG 0.107"" 4.5V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The Honeywell Sensing and Productivity Solutions ABP2 series pressure sensor, part number ABP2DSNT150PGAA5XX, offers a 150 PSI gauge pressure range with ±0.25% accuracy. This sensor provides an amplified analog voltage output from 0.5 V to 4.5 V, featuring temperature compensation and an internal diagnostic capability. It is designed for through-hole mounting and utilizes a barbed port for a 0.107" (2.72mm) male tube connection. The 6-DIP package, with dimensions of 0.453" (11.50mm) and a top port, ensures robust integration into various systems. Operating across a wide temperature range of -40°C to 110°C, this component is suitable for demanding applications in industrial automation, medical equipment, and HVAC systems. The supply voltage range is 4.75 V to 5.25 V.
Additional Information
Series: ABP2RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Box |
| Package / Case | 6-DIP (0.453"", 11.50mm), Top Port |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 150PSI (1034.21kPa) |
| Pressure Type | Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.107"" (2.72mm) Tube |
| Supplier Device Package | 6-DIP |
| Port Style | Barbed |
| Maximum Pressure | 240PSI (1654.74kPa) |
