ABP2DRRT001PDAA3XX
SENSOR 1PSID 0.063"" 2.97V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

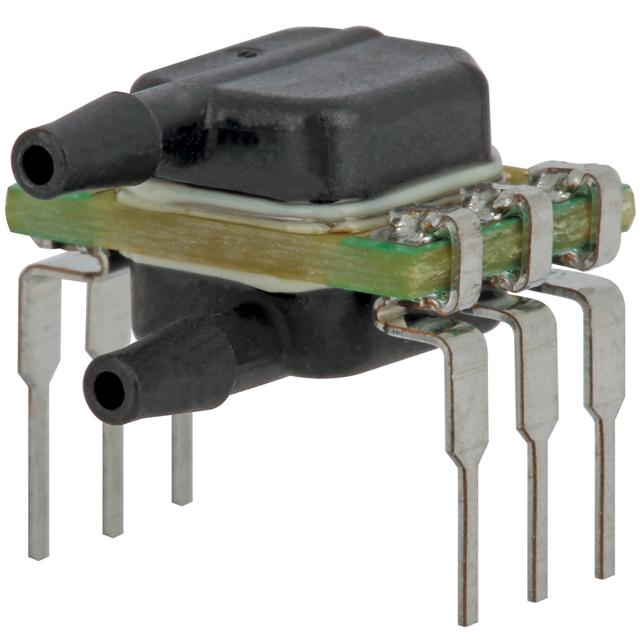

Honeywell Sensing and Productivity Solutions ABP2 series differential pressure sensor, part number ABP2DRRT001PDAA3XX. This sensor offers a differential pressure range of -1 PSI to 1 PSI (-6.89kPa to 6.89kPa) with an analog voltage output from 0.33V to 2.97V. It features temperature compensation and an amplified output with ±0.25% accuracy. The component is housed in a 6-DIP package with dual barbed ports on the same side, each accepting a 0.063" (1.6mm) tube. Designed for through-hole mounting, it operates within a supply voltage of 3V to 3.6V and an extended temperature range of -40°C to 110°C. The maximum pressure rating is 30 PSI. This component is commonly utilized in industrial automation, HVAC systems, and medical equipment.
Additional Information
Series: ABP2RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tube |
| Package / Case | 6-DIP (0.453"", 11.50mm), Dual Ports, Same Side |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.33 V ~ 2.97 V |
| Operating Pressure | -1PSI ~ 1PSI (-6.89kPa ~ 6.89kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.063"" (1.6mm) Tube, Dual |
| Supplier Device Package | 6-DIP |
| Port Style | Barbed |
| Maximum Pressure | 30PSI (206.84kPa) |
