ABP2DRNT006KG2A3XX
SENSOR 0.87PSIG 14BIT 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

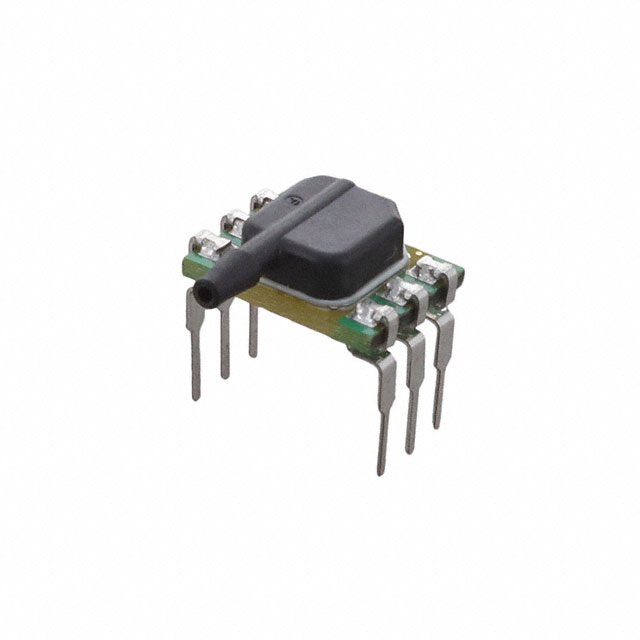

Honeywell Sensing and Productivity Solutions ABP2 Series pressure sensor, part number ABP2DRNT006KG2A3XX. This vented gauge sensor offers precise measurement of 0.87 PSI (6kPa) with a 14-bit I2C digital output. Featuring amplified output and temperature compensation, it provides ±0.25% accuracy across an operating temperature range of -40°C to 110°C. The device is housed in a 6-DIP module with a side port and PC pin termination, designed for through-hole mounting. Its compact form factor and robust performance make it suitable for applications in industrial automation, medical equipment, and HVAC systems. The ABP2 Series operates with a supply voltage from 1.8V to 3.6V.
Additional Information
Series: ABP2RoHS Status: RoHS CompliantManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 6-DIP Module, Side Port |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 14 b |
| Operating Pressure | 0.87PSI (6kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.8V ~ 3.6V |
| Port Size | - |
| Supplier Device Package | 6-DIP |
| Port Style | - |
| Maximum Pressure | - |
