ABP2DDAN005NDAA5XX
SENSOR 0.18PSID 0.12"" 4.5V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

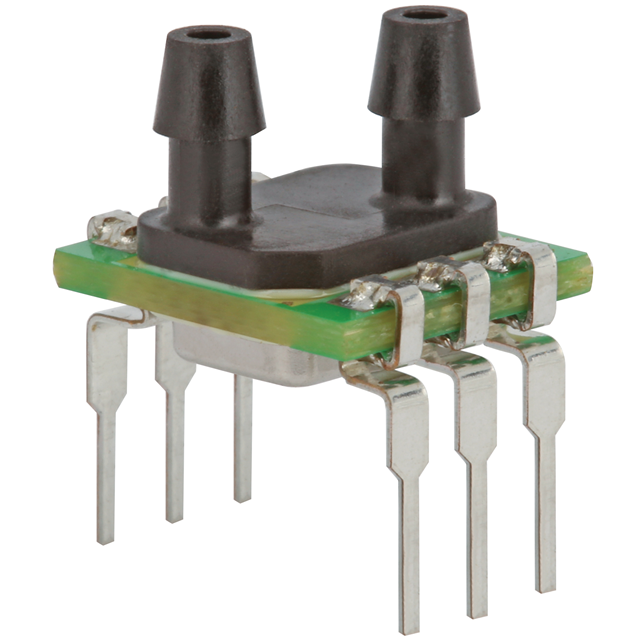

Honeywell Sensing and Productivity Solutions ABP2 series differential pressure sensor, part number ABP2DDAN005NDAA5XX. This sensor measures pressure from -0.18 PSI to 0.18 PSI (-1.25 kPa to 1.25 kPa) with a ±0.25% accuracy. It features an amplified and temperature-compensated analog voltage output ranging from 0.5 V to 4.5 V, supplied by a 4.75 V to 5.25 V source. The ABP2DDAN005NDAA5XX utilizes a 6-DIP package with dual top ports and a male 0.12" (3mm) barbed tube port style. Designed for through-hole mounting, this component operates across a wide temperature range of -40°C to 110°C and is suitable for applications in industrial automation, medical devices, and HVAC systems.
Additional Information
Series: ABP2RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Box |
| Package / Case | 6-DIP (0.453"", 11.50mm), Dual Top Ports |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | -0.18PSI ~ 0.18PSI (-1.25kPa ~ 1.25kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.12"" (3mm) Tube, Dual |
| Supplier Device Package | 6-DIP |
| Port Style | Barbed |
| Maximum Pressure | 9.75PSI (67.25kPa) |
