ABP2DANT001PGSA3XX
SENSOR 1PSIG 0.11"" 14BIT 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

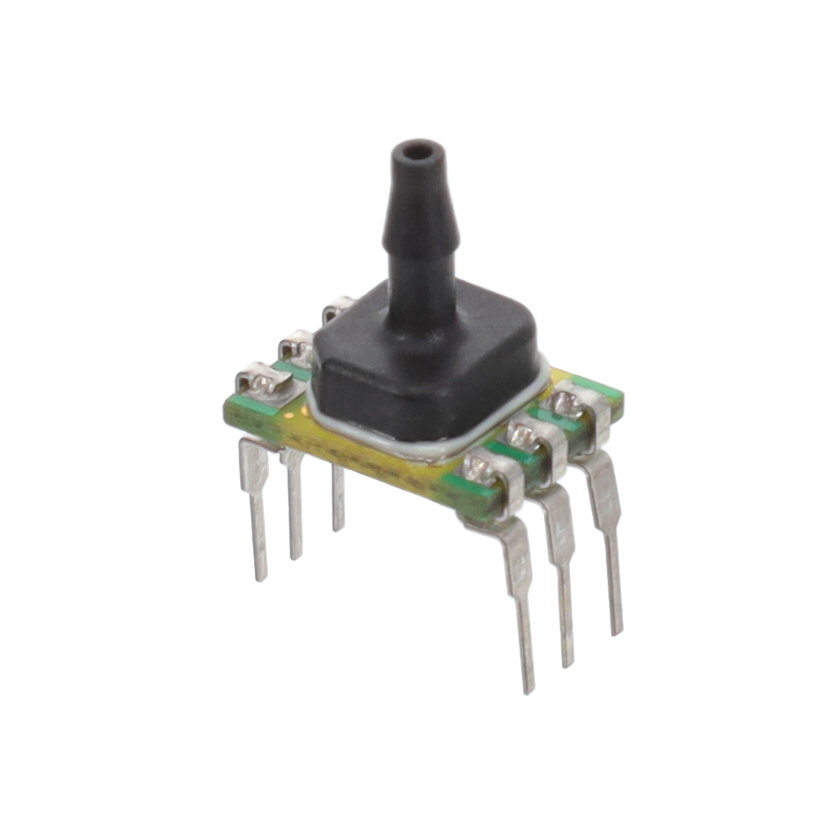

Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.11"" (2.74mm) Tube 14 b 6-DIP Module, Top Port
Additional Information
Series: ABP2RoHS Status: RoHS CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Box |
| Package / Case | 6-DIP Module, Top Port |
| Output Type | SPI |
| Mounting Type | Through Hole |
| Output | 14 b |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.8V ~ 3.6V |
| Port Size | Male - 0.11"" (2.74mm) Tube |
| Supplier Device Package | 6-DIP |
| Port Style | Barbed |
| Maximum Pressure | 250PSI (1723.69kPa) |
