9306704
SENSOR 100PSIA 1/8""NPT 6VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

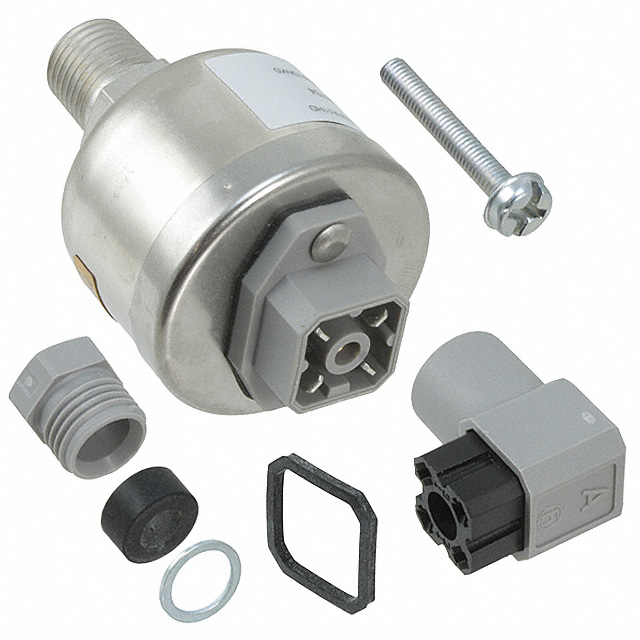

Honeywell Sensing and Productivity Solutions SA Series pressure sensor, part number 9306704. This absolute pressure sensor features a 100 PSIA (689.48 kPa) operating pressure range and a 1/8" NPT male port for threaded connections. The analog voltage output spans from 1 V to 6 V, with a ±1% accuracy rating. Designed for temperature compensation, it operates across a wide temperature range of -55°C to 105°C. The sensor is rated for a maximum pressure of 200 PSIA (1378.95 kPa). Typical applications include industrial automation, HVAC systems, and medical equipment. Available in bulk packaging.
Additional Information
Series: SA SeriesRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | - |
| Output Type | Analog Voltage |
| Output | 1 V ~ 6 V |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Absolute |
| Accuracy | ±1% |
| Operating Temperature | -55°C ~ 105°C |
| Termination Style | - |
| Voltage - Supply | - |
| Port Size | Male - 1/8"" (3.18mm) NPT |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 200PSI (1378.95kPa) |
Request a Quote
Clients Also Buy

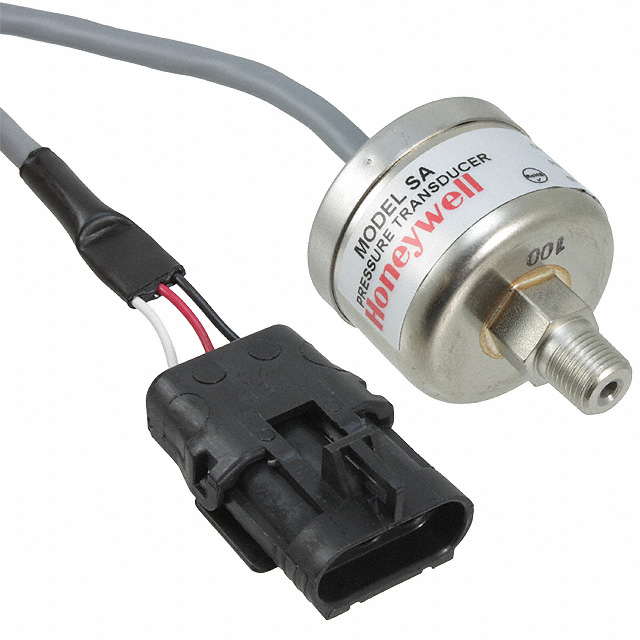

9306420
