9300101
SENSOR 100PSIG 1/8""NPT 6VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

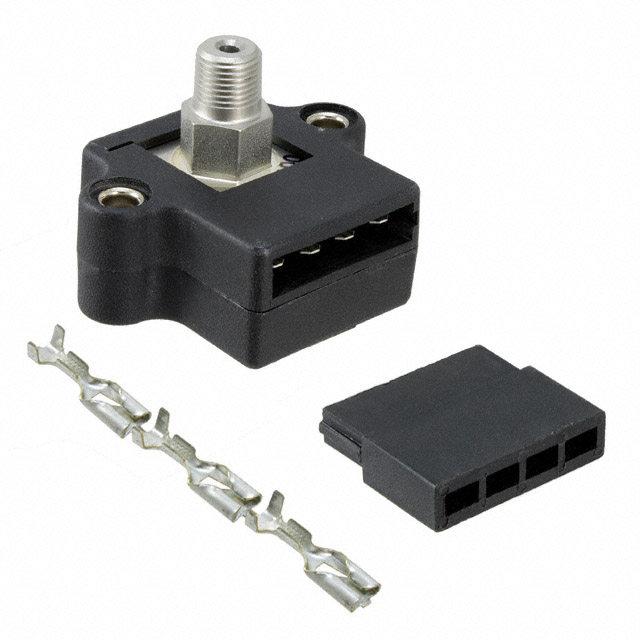

Honeywell Sensing and Productivity Solutions EA Series 9300101 is a vented gauge pressure sensor module. This component operates within a 100 PSI (689.48kPa) pressure range, with a maximum pressure capability of 200 PSI (1378.95kPa). It features a 1/8" (3.18mm) NPT male threaded port and provides an amplified analog voltage output ranging from 1 V to 6 V. The device is temperature compensated and offers ±1% accuracy across its operating temperature range of -55°C to 100°C. Designed for board mounting applications, this sensor requires a supply voltage of 8V to 24V and utilizes a 4-pin connector termination. It is suitable for various industrial and commercial applications, including automotive and industrial automation.
Additional Information
Series: EARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Module Cube |
| Output Type | Analog Voltage |
| Output | 1 V ~ 6 V |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1% |
| Operating Temperature | -55°C ~ 100°C |
| Termination Style | Connector, 4-Pin |
| Voltage - Supply | 8V ~ 24V |
| Port Size | Male - 1/8"" (3.18mm) NPT |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 200PSI (1378.95kPa) |
