9220104
SENSOR 50PSIG 0.1VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

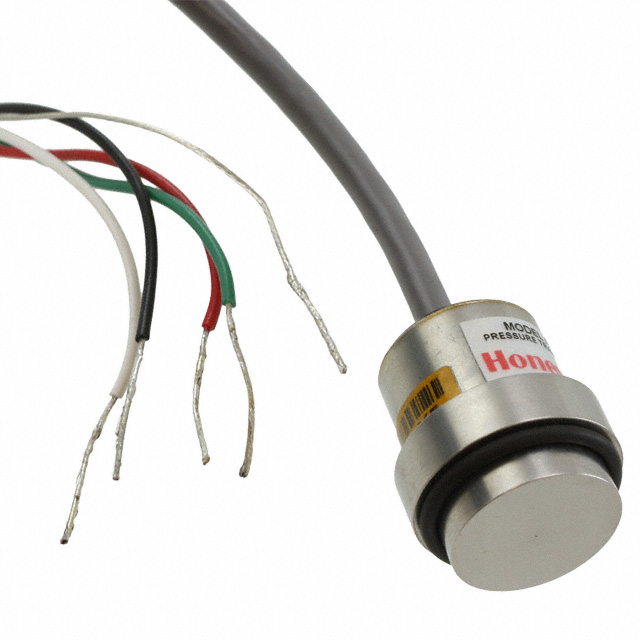

Honeywell Sensing and Productivity Solutions AB/HP Series 9220104 is a vented gauge pressure sensor with an operating pressure range of 0 to 50 PSI (344.74 kPa). This component features a ±0.5% accuracy and a temperature-compensated output of 0 mV to 100 mV across its operating temperature range of -54°C to 93°C. Designed for a supply voltage of 5V to 6V, it offers a maximum pressure rating of 250 PSI (1723.69 kPa). The sensor has no integrated port and is supplied in bulk packaging. This device is suitable for applications in industrial automation, aerospace, and medical equipment where precise pressure monitoring is critical.
Additional Information
Series: AB/HPRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Output Type | Analog Voltage |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 50PSI (344.74kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.5% |
| Operating Temperature | -54°C ~ 93°C |
| Voltage - Supply | 5V ~ 6V |
| Port Size | - |
| Port Style | No Port |
| Maximum Pressure | 250PSI (1723.69kPa) |
