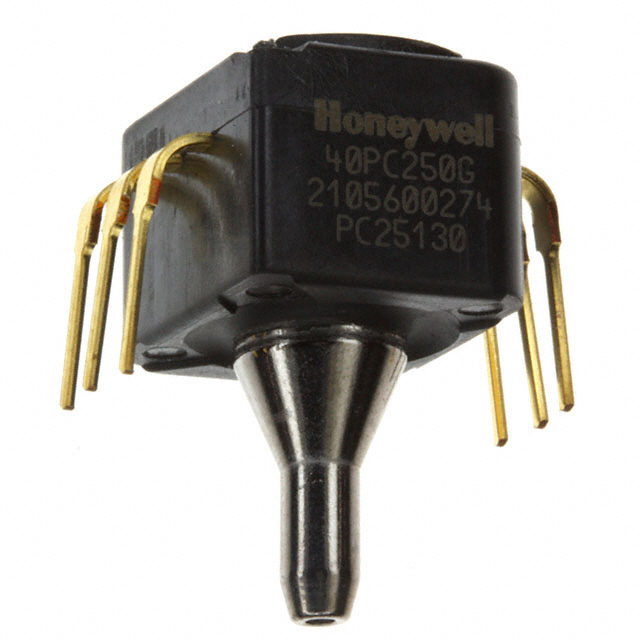

40PC250G3A
SENSOR 250PSIG 0.18"" 4.5VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions 40PC Series analog voltage output pressure sensor, part number 40PC250G3A. This vented gauge pressure sensor operates at 250 PSI (1723.69 kPa) with a maximum operating pressure of 500 PSI (3447.38 kPa). It features a 0.18" (4.57mm) male port with a barbless style. The sensor provides an amplified analog voltage output ranging from 0.5 V to 4.5 V, with a supply voltage range of 4.75 V to 5.25 V. Designed for board mounting, it utilizes a 6-DIP module package with PC pin termination and through-hole mounting. The operating temperature range is -45°C to 125°C, with an accuracy of ±3%. This component is commonly found in industrial and medical applications.
Additional Information
Series: 40PCRoHS Status: Request inventory verificationManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output |
| Packaging | Tube |
| Package / Case | 6-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 250PSI (1723.69kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±3% |
| Operating Temperature | -45°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.18"" (4.57mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 500PSI (3447.38kPa) |
