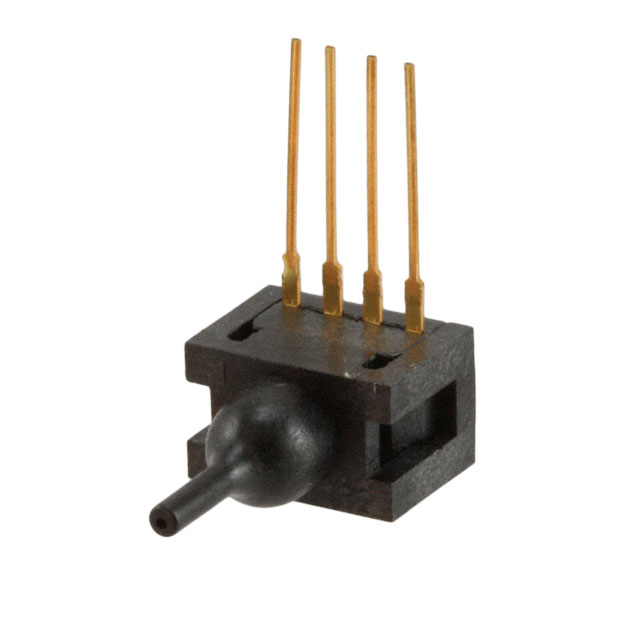

26PCBFJ6G
SENSOR 5PSIC 0.07"" .05VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions 26PC series pressure sensor, part number 26PCBFJ6G, offers a ±5 PSI compound pressure range with a 0.07" male needle port. This temperature-compensated sensor features a 4-SIP module package with PC pin termination for through-hole mounting. The output is a Wheatstone bridge signal ranging from 0 mV to 50 mV when supplied with 10V, designed for a 2.5V to 16V supply. Accuracy is rated at ±0.5% of full-scale. This component is suitable for board mount applications and finds use in industrial and medical equipment where precise pressure monitoring is critical. The maximum operating pressure is ±20 PSI, and it operates within a temperature range of -40°C to 85°C.
Additional Information
Series: 26PCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 50 mV (10V) |
| Operating Pressure | ±5PSI (±34.47kPa) |
| Pressure Type | Compound |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 2.5V ~ 16V |
| Port Size | Male - 0.07"" (1.78mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Needle |
| Maximum Pressure | ±20PSI (±137.9kPa) |
