24PCBFB6G
SENSOR 5PSIC 0.25"" .115VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions 24PC series 24PCBFB6G is a compound pressure sensor for board mount applications. This 4-SIP module features a ±5PSI (±34.47kPa) operating pressure range with a ±1% accuracy. The sensor utilizes a Wheatstone bridge output, providing a 0mV to 115mV signal across a 10V supply. It is designed for a 0.25" (6.35mm) barbed male tube port and operates within a -40°C to 85°C temperature range. The maximum pressure rating is ±20PSI (±137.9kPa). This component is commonly found in industrial automation and medical instrumentation.
Additional Information
Series: 24PCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 115 mV (10V) |
| Operating Pressure | ±5PSI (±34.47kPa) |
| Pressure Type | Compound |
| Accuracy | ±1% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 10V ~ 12V |
| Port Size | Male - 0.25"" (6.35mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | ±20PSI (±137.9kPa) |
| Grade | - |
| Qualification | - |
Request a Quote
Clients Also Buy

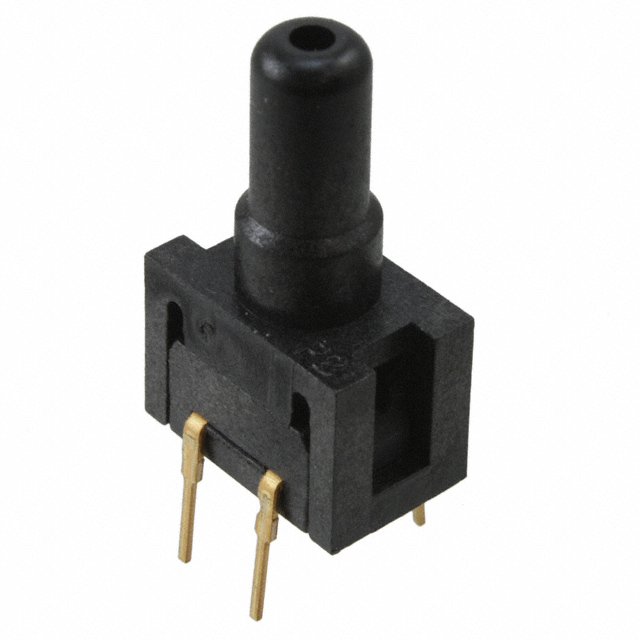

24PCAFA2G
