19C500PG4K
SENSOR 500PSIG 1/8""NPT 0.1VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

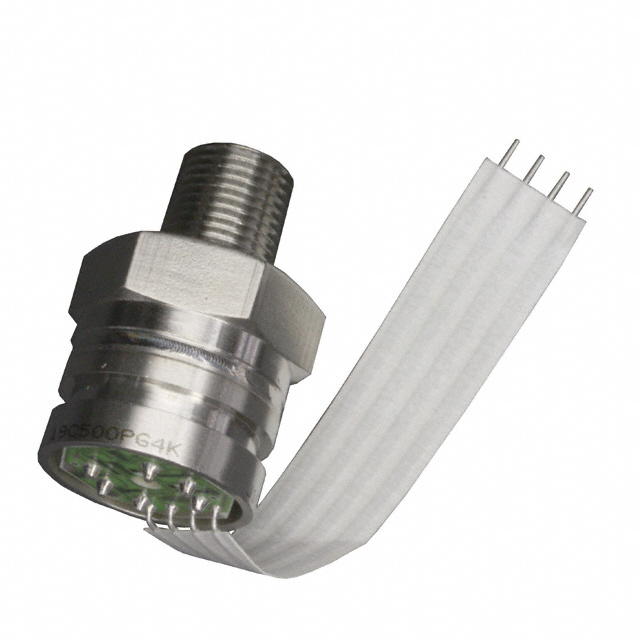

Honeywell Sensing and Productivity Solutions 19 mm series 19C500PG4K is a vented gauge pressure sensor with a 500 PSI operating pressure, equivalent to 3447.38 kPa. It features a 1/8" NPT male threaded port for connection. The sensor provides an analog voltage output ranging from 0 mV to 100 mV, with a supply voltage of 15V. Designed for demanding applications, it offers ±0.25% accuracy and is temperature compensated, operating across a wide temperature range of -40°C to 125°C. The maximum pressure rating is 1200 PSI (8273.71 kPa). This component is suitable for board mount applications and is typically utilized in industrial automation and medical equipment. The package is a threaded cylinder with flex cable termination.
Additional Information
Series: 19 mmRoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder, Threaded |
| Output Type | Analog Voltage |
| Output | 0 mV ~ 100 mV (10V) |
| Operating Pressure | 500PSI (3447.38kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Flex Cable |
| Voltage - Supply | 15V |
| Port Size | Male - 1/8"" (3.18mm) NPT |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 1200PSI (8273.71kPa) |
Request a Quote
