19C500PA2K
SENSOR 500PSIA 0.1VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

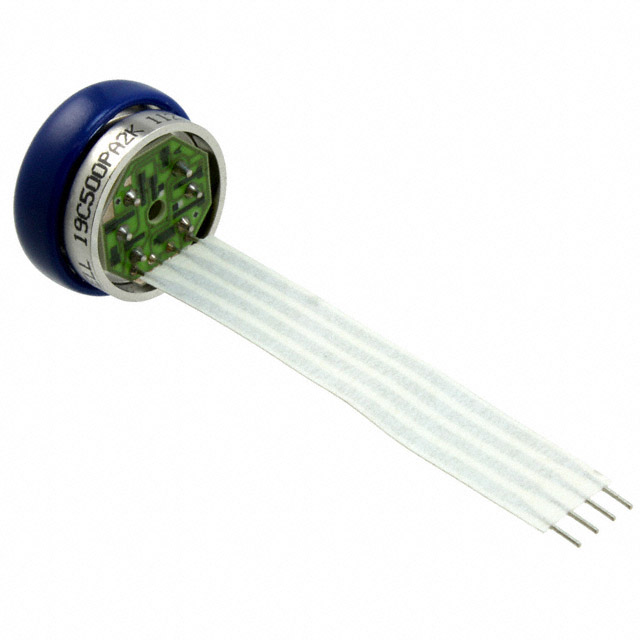

Honeywell Sensing and Productivity Solutions 19 mm Series 19C500PA2K is an absolute pressure sensor with a 500 PSI operating range, equivalent to 3447.38 kPa. This temperature-compensated sensor offers ±0.25% accuracy and features an analog voltage output from 0 mV to 100 mV when supplied with 15V. Designed for board mounting, it has a maximum pressure rating of 1200 PSI (8273.71 kPa) and operates across a temperature range of -40°C to 125°C. The component is delivered in bulk packaging with a cylinder package/case and flex cable termination. Its robust design makes it suitable for applications in industrial automation and medical equipment.
Additional Information
Series: 19 mmRoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder |
| Output Type | Analog Voltage |
| Output | 0 mV ~ 100 mV (10V) |
| Operating Pressure | 500PSI (3447.38kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Flex Cable |
| Voltage - Supply | 15V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 1200PSI (8273.71kPa) |
