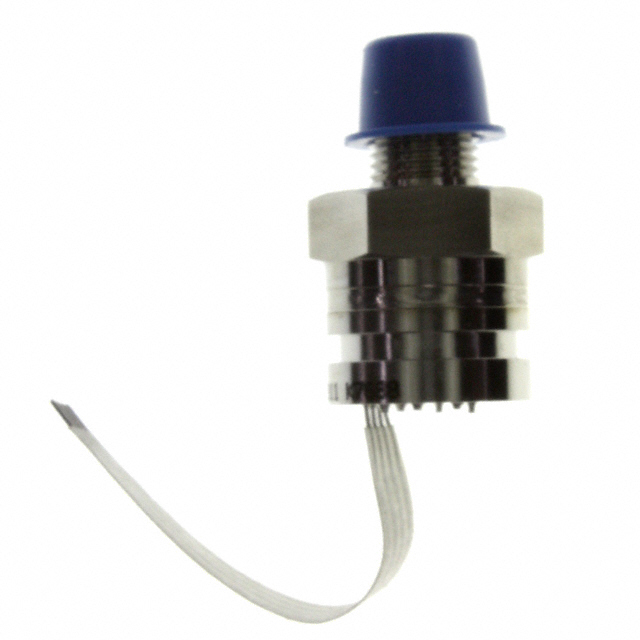

19C300PG4K
SENSOR 300PSIG 1/8""NPT 0.1VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions 19 mm series 19C300PG4K is a vented gauge pressure sensor with a 300 PSI (2068.43 kPa) operating pressure range. This component features a 1/8" (3.18mm) NPT male port and an analog voltage output ranging from 0 mV to 100 mV, requiring a 15V supply. Designed with temperature compensation, it offers an accuracy of ±0.25% and operates across a wide temperature range of -40°C to 125°C. The maximum pressure rating is 900 PSI (6205.28 kPa). This device is suitable for applications in industries such as industrial automation, medical devices, and HVAC systems. Its cylinder, threaded package with flex cable termination makes it ideal for board mount implementations.
Additional Information
Series: 19 mmRoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder, Threaded |
| Output Type | Analog Voltage |
| Output | 0 mV ~ 100 mV (10V) |
| Operating Pressure | 300PSI (2068.43kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Flex Cable |
| Voltage - Supply | 15V |
| Port Size | Male - 1/8"" (3.18mm) NPT |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 900PSI (6205.28kPa) |
