19C200PG2K
SENSOR 200PSIG 0.1VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

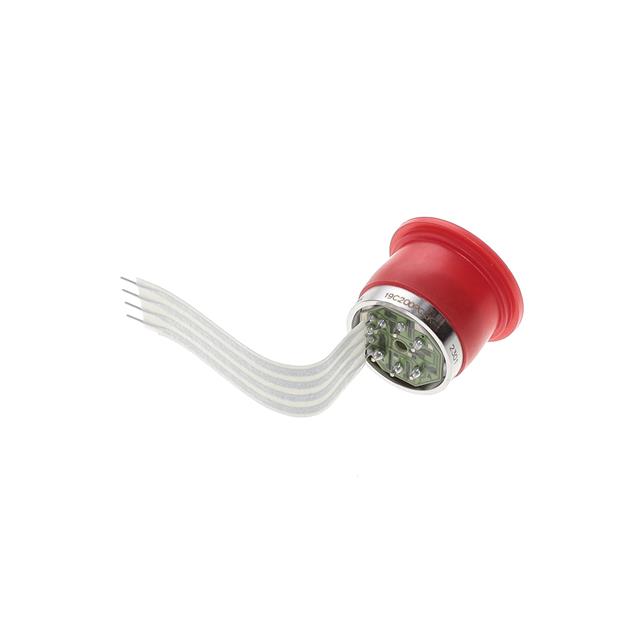

Honeywell Sensing and Productivity Solutions 19C200PG2K is a vented gauge pressure sensor, part of the 19 mm series. This analog voltage output component provides a 0 mV to 100 mV output signal across its operating pressure range of 200 PSIG (1378.95 kPa). The sensor features ±0.25% accuracy and is temperature compensated, operating reliably within a -40°C to 125°C temperature range. Designed for a 15V supply, it offers a maximum pressure rating of 600 PSIG (4136.85 kPa). The package is a cylinder with a flex cable termination. This component is suitable for demanding applications in industries such as industrial automation, medical devices, and HVAC systems.
Additional Information
Series: 19 mmRoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder |
| Output Type | Analog Voltage |
| Output | 0 mV ~ 100 mV (10V) |
| Operating Pressure | 200PSI (1378.95kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Flex Cable |
| Voltage - Supply | 15V |
| Port Size | - |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 600PSI (4136.85kPa) |
