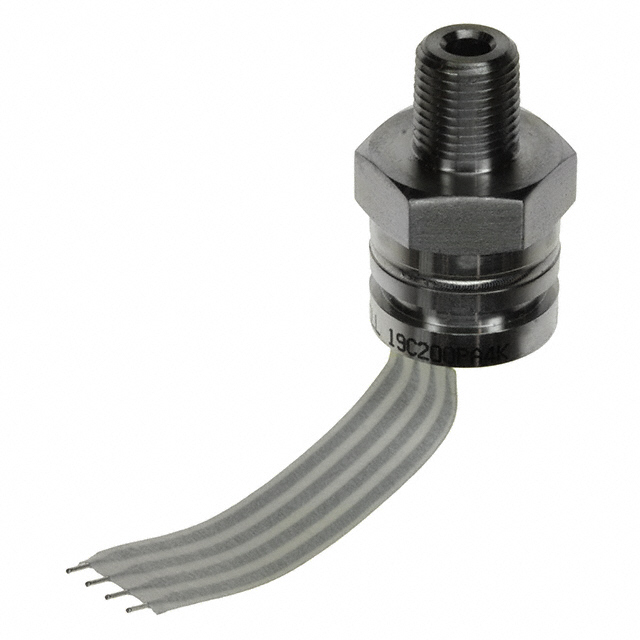

19C200PA4K
SENSOR 200PSIA 1/8""NPT 0.1VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions 19C200PA4K is an absolute pressure sensor with an operating pressure range of 0 to 200 PSI (1378.95 kPa). This component features a 1/8" NPT male port and is designed for board mounting applications. The sensor provides an analog voltage output ranging from 0 mV to 100 mV, with a supply voltage of 15V. It offers ±0.25% accuracy and is temperature compensated for reliable performance across an operating temperature range of -40°C to 125°C. The 19 mm series component is supplied in bulk packaging and is suitable for use in industrial and automotive applications.
Additional Information
Series: 19 mmRoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder, Threaded |
| Output Type | Analog Voltage |
| Output | 0 mV ~ 100 mV (10V) |
| Operating Pressure | 200PSI (1378.95kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Flex Cable |
| Voltage - Supply | 15V |
| Port Size | Male - 1/8"" (3.18mm) NPT |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 600PSI (4136.85kPa) |
Request a Quote
