19C100PA4K
SENSOR 100PSIA 1/8""NPT 0.1VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

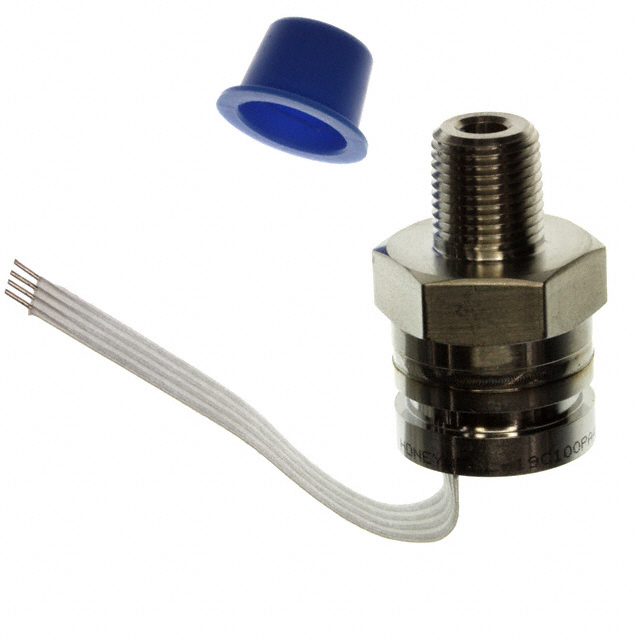

Honeywell Sensing and Productivity Solutions 19 mm series absolute pressure sensor, part number 19C100PA4K. This sensor measures pressure up to 100 PSI (689.48kPa) with an accuracy of ±0.25%, featuring a 1/8" NPT male threaded port. The output is an analog voltage ranging from 0 mV to 100 mV, referenced to a 10V span. It operates with a supply voltage of 15V and is temperature compensated, functioning across an operating temperature range of -40°C to 125°C. The cylinder, threaded package is designed for board mount applications and is supplied in bulk packaging. This component is utilized in industries such as aerospace and industrial automation.
Additional Information
Series: 19 mmRoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder, Threaded |
| Output Type | Analog Voltage |
| Output | 0 mV ~ 100 mV (10V) |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Flex Cable |
| Voltage - Supply | 15V |
| Port Size | Male - 1/8"" (3.18mm) NPT |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 300PSI (2068.43kPa) |
