19C050PG1L
SENSOR 50PSIG 0.1VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

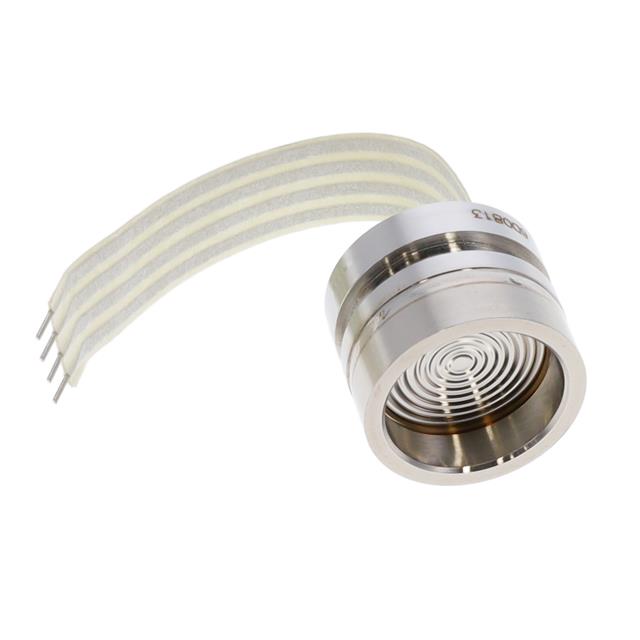

Honeywell Sensing and Productivity Solutions' 19 mm series 19C050PG1L is a pressure sensor featuring a vented gauge cell with a body O-ring for robust sealing. This analog voltage output device provides a 0 mV to 100 mV signal, corresponding to an operating pressure of 50 PSI (344.74 kPa). It is designed for applications requiring precise pressure measurement within a range of ±0.25% accuracy and operates across a wide temperature spectrum from -40°C to 125°C. The sensor is housed in a cylinder package with flex cable termination, suitable for integration into various industrial and commercial systems. Its maximum pressure rating is 150 PSI (1034.21 kPa). This component finds application in automotive, industrial automation, and medical equipment sectors.
Additional Information
Series: 19 mmRoHS Status: RoHS CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder |
| Output Type | Analog Voltage |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 50PSI (344.74kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Flex Cable |
| Voltage - Supply | - |
| Port Size | Cell w/Body O-Ring |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 150PSI (1034.21kPa) |
