19C030PV2K
SENSOR 30PSI 0.1VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

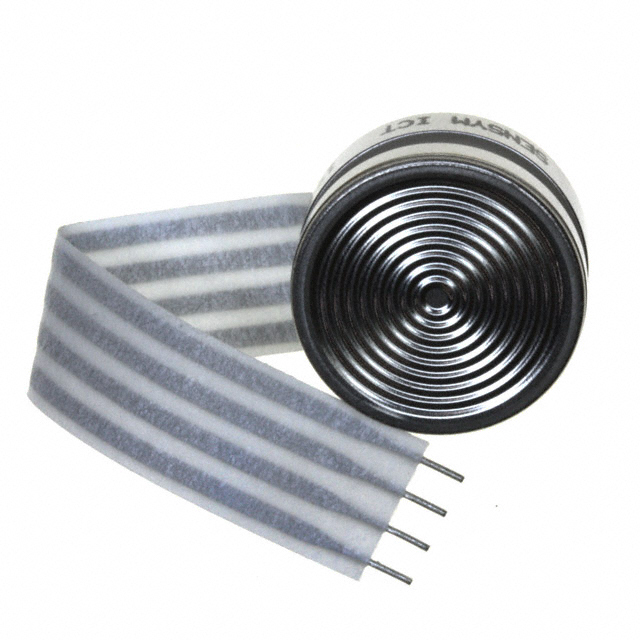

Honeywell Sensing and Productivity Solutions 19 mm Series pressure sensor, part number 19C030PV2K. This 19 mm series sensor is designed for board mounting applications, offering a vacuum pressure range from -30 PSI (-206.84kPa) up to a maximum of -90 PSI (-620.53kPa). It provides an analog voltage output ranging from 0 mV to 100 mV, powered by a 15V supply. Featuring temperature compensation and an accuracy of ±0.25%, this sensor is built for reliable performance across an operating temperature range of -40°C to 125°C. The component is supplied in bulk packaging and utilizes a flex cable termination style. It is commonly employed in industrial automation and control systems.
Additional Information
Series: 19 mmRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder |
| Output Type | Analog Voltage |
| Output | 0 mV ~ 100 mV (10V) |
| Operating Pressure | -30PSI (-206.84kPa) |
| Pressure Type | Vacuum |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Flex Cable |
| Voltage - Supply | 15V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | -90PSI (-620.53kPa) |
