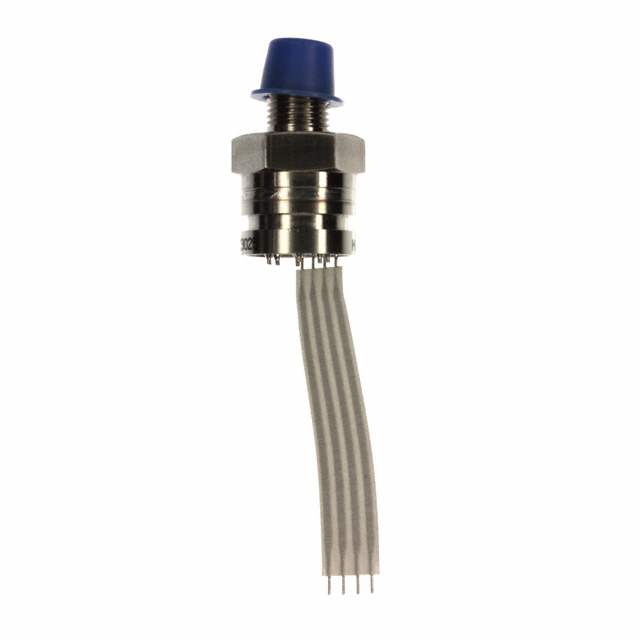

19C030PG4K
SENSOR 30PSIG 1/8""NPT 0.1VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions 19 mm Series 19C030PG4K is a vented gauge pressure sensor with a 30 PSI (206.84kPa) operating pressure range. This component features a 1/8" NPT male threaded port and offers an analog voltage output from 0 mV to 100 mV with a 10V excitation. The sensor provides ±0.25% accuracy and is temperature compensated, operating across a wide temperature range of -40°C to 125°C. Its design is suitable for board mount applications and it is packaged in bulk. The maximum pressure rating is 90 PSI (620.53kPa). This sensor is utilized in industrial automation and control systems.
Additional Information
Series: 19 mmRoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder, Threaded |
| Output Type | Analog Voltage |
| Output | 0 mV ~ 100 mV (10V) |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Flex Cable |
| Voltage - Supply | 15V |
| Port Size | Male - 1/8"" (3.18mm) NPT |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 90PSI (620.53kPa) |
