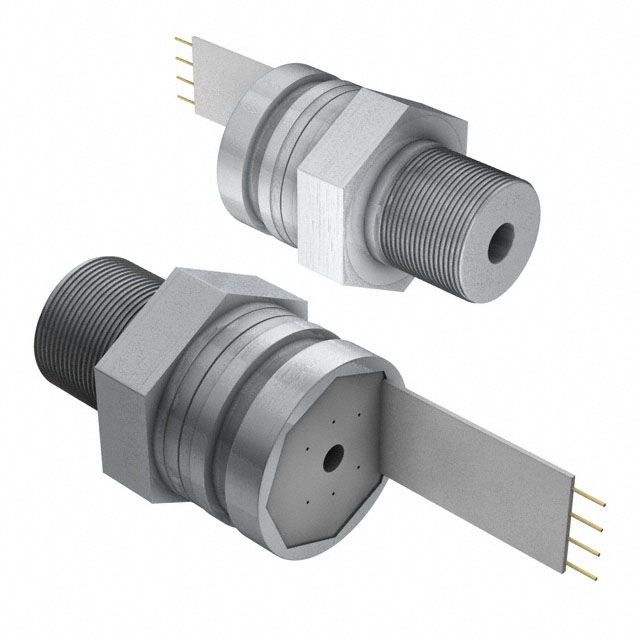

19C015PV5L
SENSOR 15PSI 1/4""NPT 0.1VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions 19 mm series, part number 19C015PV5L, is an analog voltage output pressure sensor designed for vacuum applications. This component operates within a range of -15 PSI (-103.42 kPa) and features a maximum pressure rating of -45 PSI (-310.26 kPa). The sensor provides an output signal from 0 mV to 100 mV, with a specified accuracy of ±0.25%. It is equipped with a 1/4" NPT threaded port for vacuum connection. The operating temperature range is -40°C to 125°C, and it incorporates temperature compensation for enhanced performance. This sensor is suitable for board mount applications and is supplied in bulk packaging. It is utilized in various industrial and commercial systems requiring precise vacuum measurement.
Additional Information
Series: 19 mmRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder, Threaded |
| Output Type | Analog Voltage |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | -15PSI (-103.42kPa) |
| Pressure Type | Vacuum |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Flex Cable |
| Voltage - Supply | - |
| Port Size | Male - 1/4"" (6.35mm) NPT |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | -45PSI (-310.26kPa) |
