19C015PV2K
SENSOR 15PSI 0.1VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

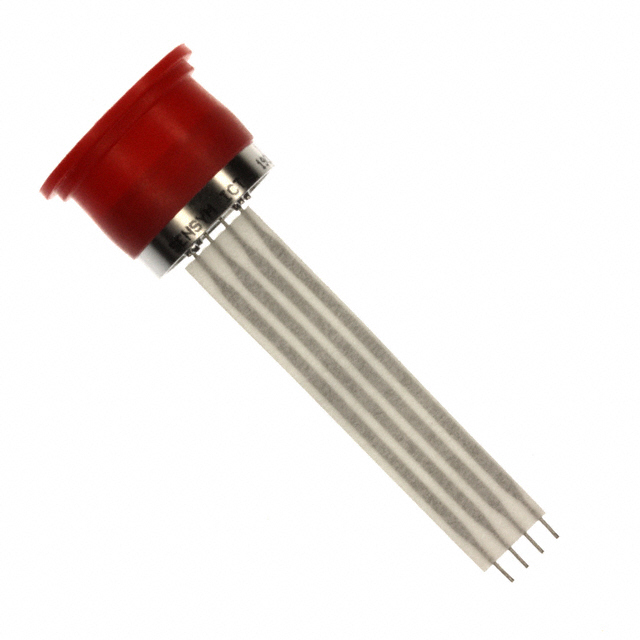

Honeywell Sensing and Productivity Solutions 19 mm Series pressure sensor, part number 19C015PV2K. This sensor is designed for vacuum pressure measurement, with an operating range of -15 PSI (-103.42 kPa) to a maximum of -45 PSI (-310.26 kPa). It provides an analog voltage output ranging from 0 mV to 100 mV, sourced from a 10V reference. The component features temperature compensation and ±0.25% accuracy, operating within a -40°C to 125°C temperature range. Supplied in bulk packaging, this board-mount sensor utilizes a flex cable termination. Applications include industrial automation and HVAC systems.
Additional Information
Series: 19 mmRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder |
| Output Type | Analog Voltage |
| Output | 0 mV ~ 100 mV (10V) |
| Operating Pressure | -15PSI (-103.42kPa) |
| Pressure Type | Vacuum |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Flex Cable |
| Voltage - Supply | 15V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | -45PSI (-310.26kPa) |
