19C015PA4K
SENSOR 15PSIA 1/8""NPT 0.1VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

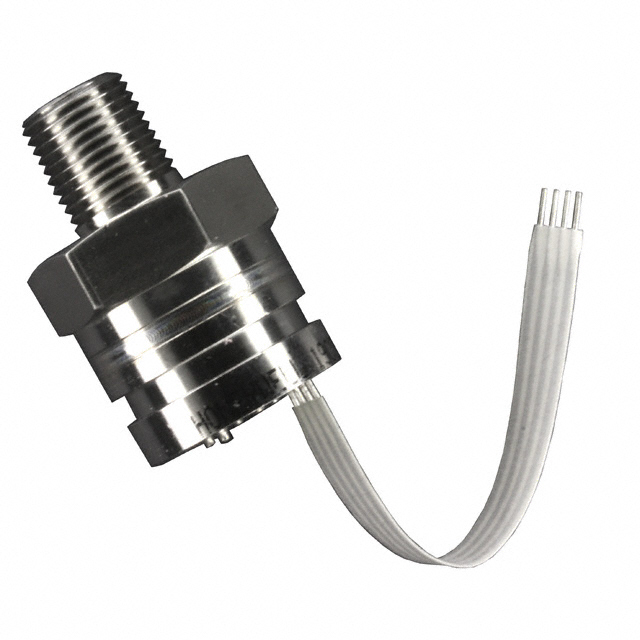

Honeywell Sensing and Productivity Solutions 19 mm series pressure sensor, part number 19C015PA4K. This absolute pressure sensor measures up to 15 PSI (103.42kPa) with an accuracy of ±0.25%. It features a 1/8"" (3.18mm) NPT male threaded port and outputs an analog voltage ranging from 0 mV to 100 mV, supplied by a 15V source. The device is temperature compensated and operates across a wide temperature range of -40°C to 125°C. Its robust construction and 0 mV ~ 100 mV (10V) output make it suitable for demanding applications in industrial automation and HVAC systems. The sensor is packaged in a threaded cylinder with a flex cable termination.
Additional Information
Series: 19 mmRoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder, Threaded |
| Output Type | Analog Voltage |
| Output | 0 mV ~ 100 mV (10V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Flex Cable |
| Voltage - Supply | 15V |
| Port Size | Male - 1/8"" (3.18mm) NPT |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 45PSI (310.26kPa) |
